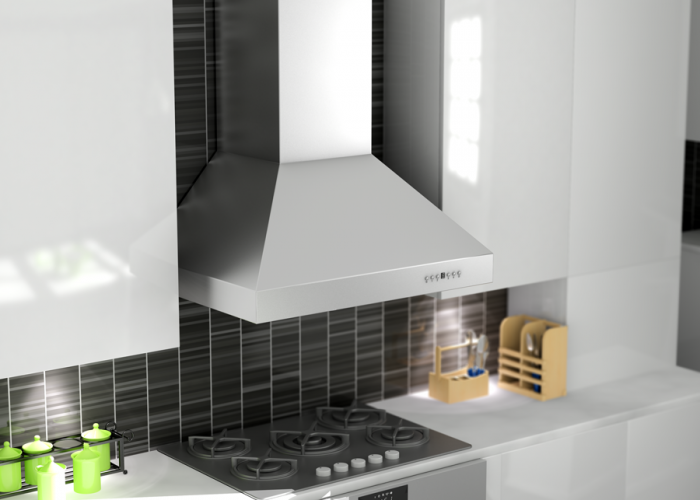

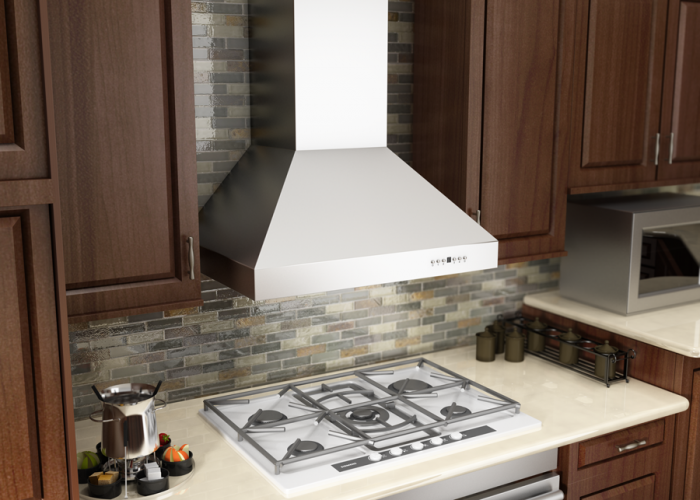

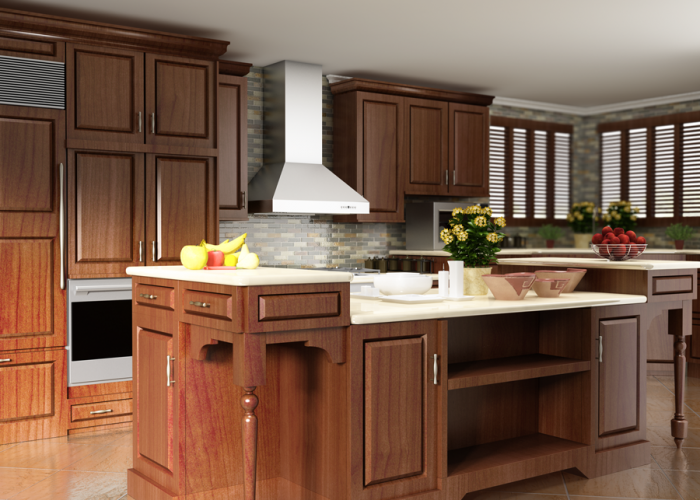

ZLINE 54 in. Professional Ducted Wall Mount Range Hood in Stainless Steel, 697-54
ZLINE 54" Stainless Steel Indoor Wall Range Hood, 697-54
OPTIONS & ACCESSORIES
Ductless/Recirculate Option - No
Ceiling Heights Options:
Less 8’ - Require Short Kit SK-455/476/477/667/697
8’ to 9' - No Ext or Short Kit required
9' to 10’ - Require Ext 1PCEXT-455/476/477/667/697
10' to 12’ - Require Ext 2PCEXT-455/476/477/667/697
Crown Molding(s) - Available for purchase (sold separately):
CM1-455/476/477/667/697
CM2-455/476/477/667/697
CM3-455/476/477/667/697
CM4-455/476/477/667/697
CM5-455/476/477/667/697
CM6-455/476/477/667/697
Certified Outdoor Use - No
Also available in 30"(697-30), 36"(697-36), 42"(697-42), 48"(697-48) and 60"(697-60)
PRODUCT DESCRIPTION:
PRODUCT SPECIFICATIONS:
Brand: | ZLINE Kitchen and Bath |
Dimension: | 54" W x 27.5" D x 16.375" H |
Chimney (Dimension): | 13.5" W x 11.75" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~7-8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings |
Venting Size: | 8" Outlet (Transition piece to round ducting included) |
Airflow (Q/L/M/H): | 280/460/670/700 (CFM) |
Lighting: | 4 Directional LED Lights (3-Watt) |
Noise Level: | 30/42/51/56 (Decibels) |
Voltage: | 110V/60HZ |
Motor: | High Performance 700 CFM/4-Speed Motor |
Mount Type: | Wall Mounted |
Speeds: | 4 speeds |
Control Type: | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
Filters: | Stainless Steel Baffle Filters (Dishwasher Safe) |
Material: | 21g #430 Stainless Steel |
Warranty: | 3 Year Parts Warranty |
Features: | Model No. 697-54 (ETL Listed) |
UPC: | 855187005337 |
Certifications: | ETL Certified |
Range Hood Decibel Levels:

Chimney Sizing:
