Availability: The main Data S configurations are currently sold out. Availability can change with future production; select the desired finish and water configuration for the current status.
Electrical requirement: The Data S is a 110V, 2,200W machine supplied with a NEMA 5-20 plug. It requires a correctly wired dedicated 20A circuit and will not operate from a standard 15A receptacle.
Choose the water configuration carefully: “Tank Only” variants use the 1.5 L reservoir. “Direct Connect + Tank” variants add direct-water capability while retaining the reservoir.

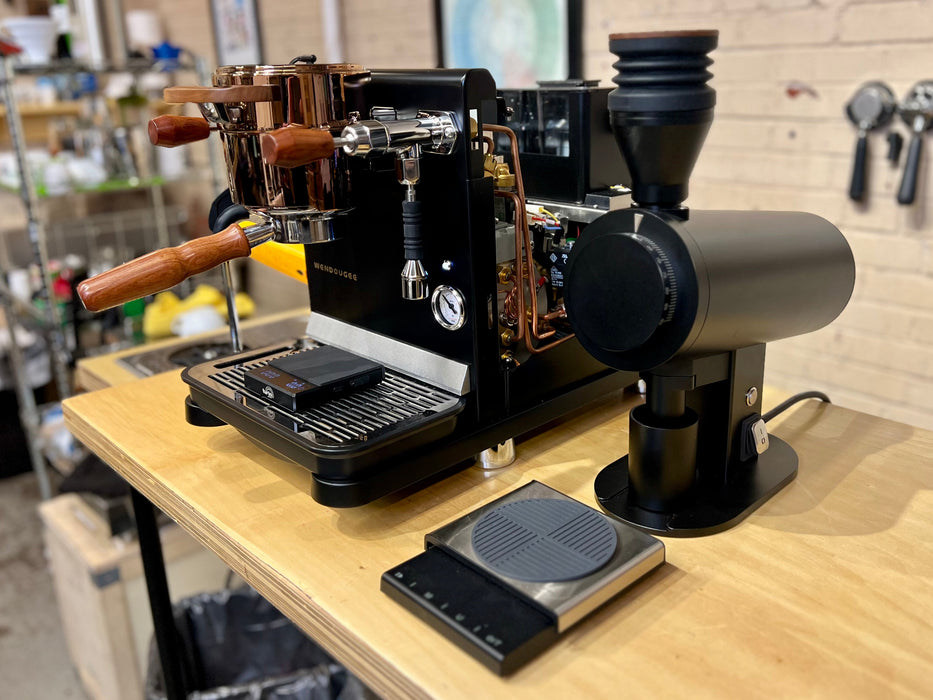

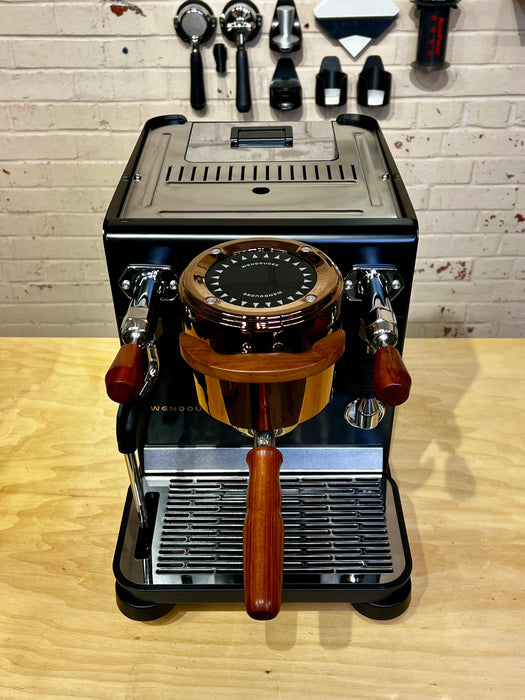

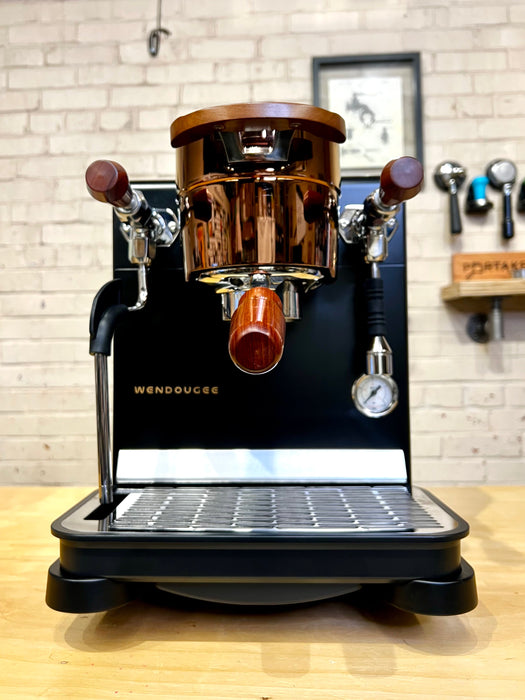

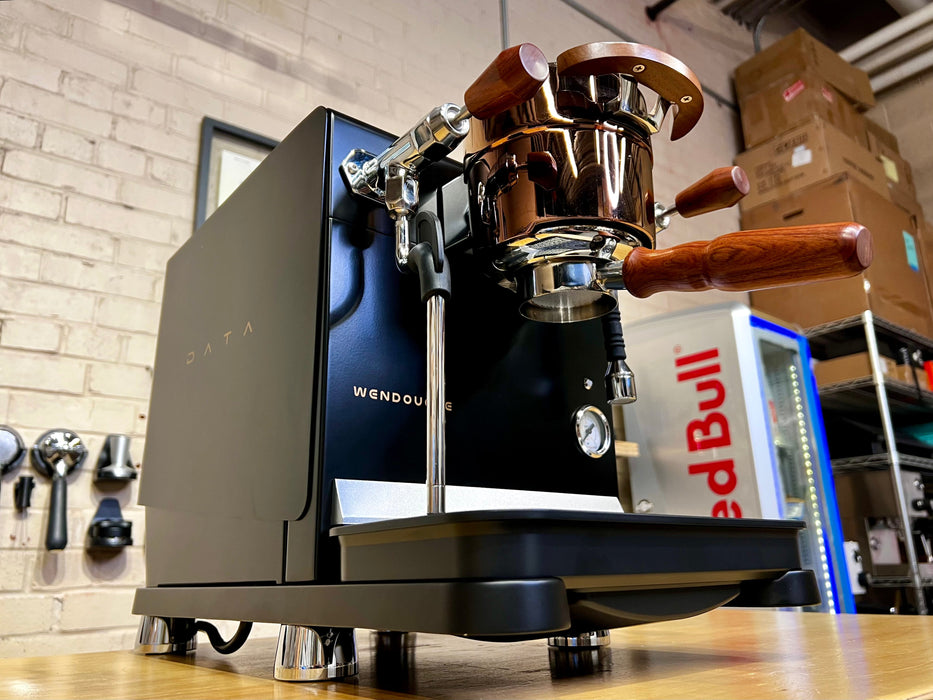

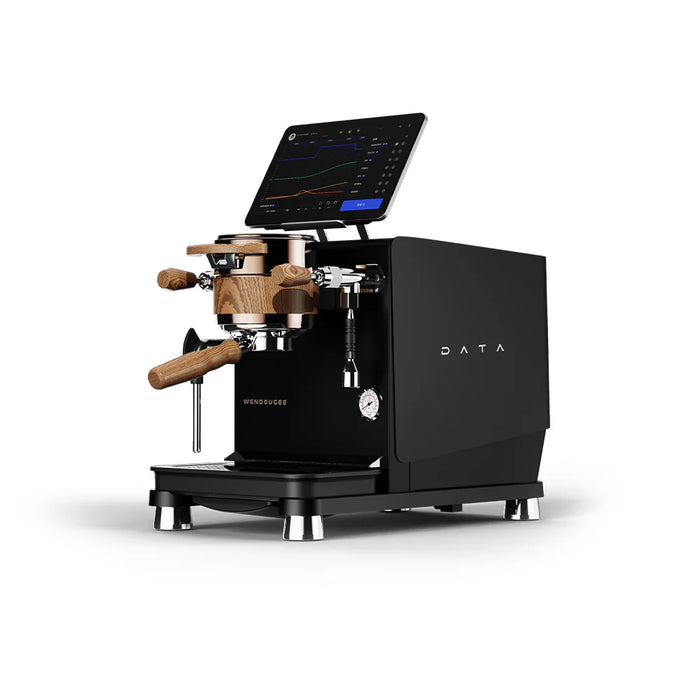

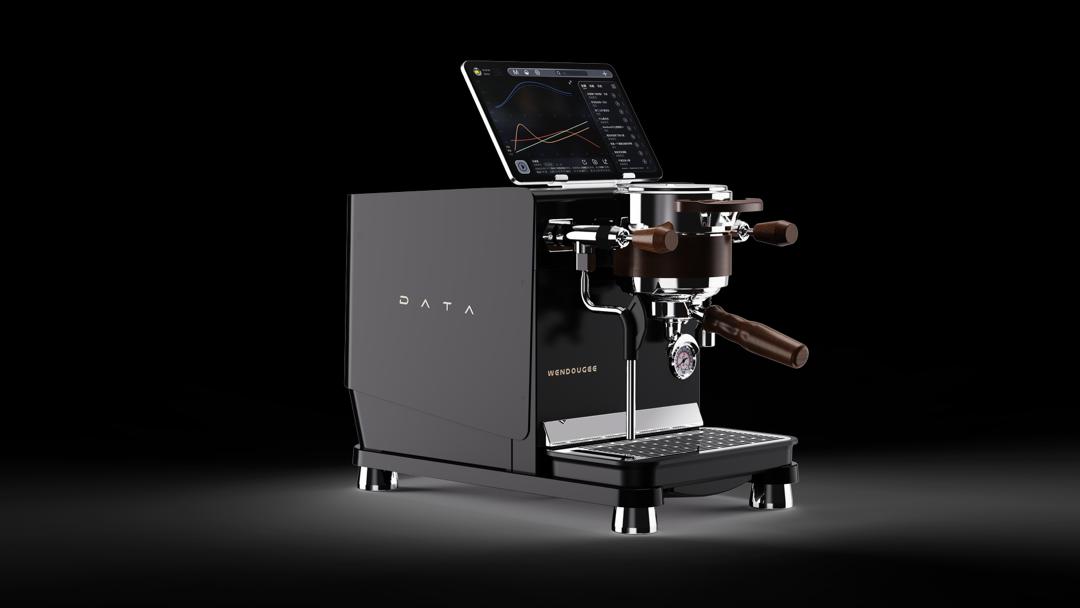

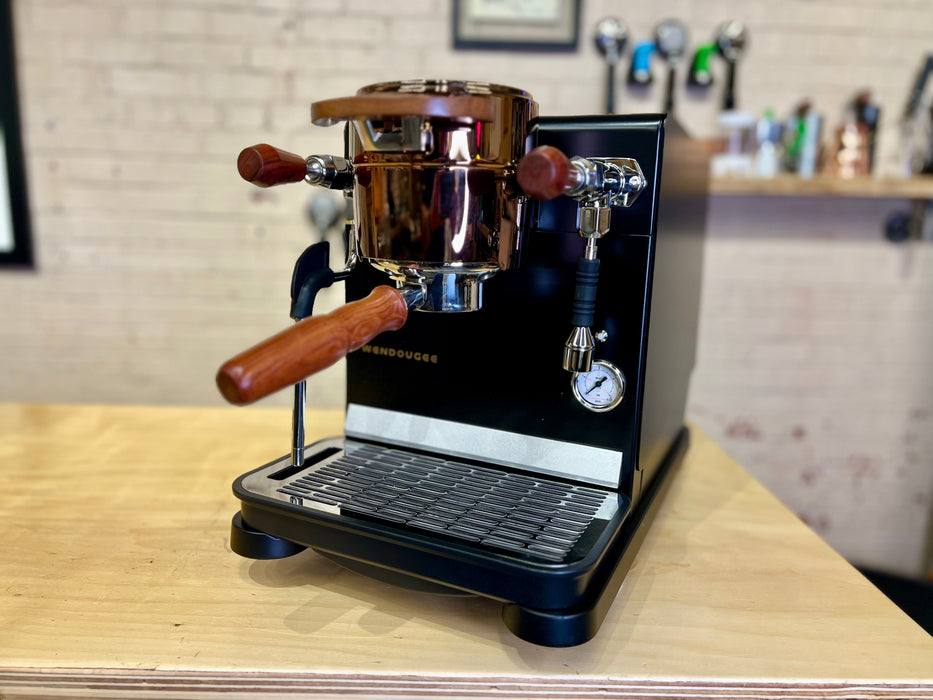

Wendougee Data S Pressure-Profiling Espresso Machine
The Wendougee Data S is a compact dual-boiler espresso machine built around a 0.8 L stainless-steel brew boiler, 1.8 L stainless-steel steam boiler and gear-pump pressure control. It is intended for advanced home baristas and specialized installations where pressure profiling, substantial steam capacity and optional direct-water operation matter.
A tablet is an optional add-on and is not included in the base machine price. Plan the electrical supply, counter depth, tablet clearance and water configuration before ordering.
Is the Data S Right for You?
Choose it for: Gear-pump pressure profiling, independent brew and steam boilers, strong milk-drink capacity and optional direct plumbing.
Electrical planning is mandatory: A standard 15A kitchen outlet is not sufficient.
Allow enough depth: The machine is approximately 19.25 inches deep before allowing room for hoses, the power cord and working clearance.

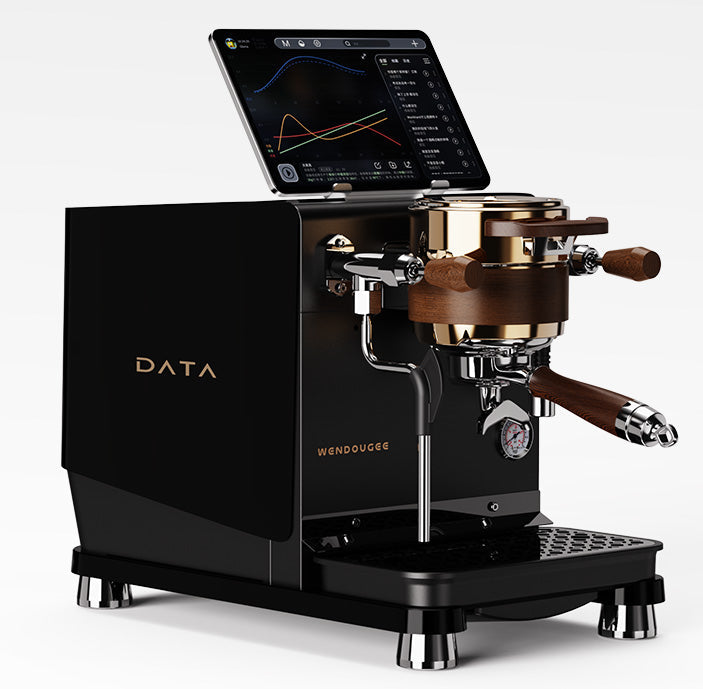

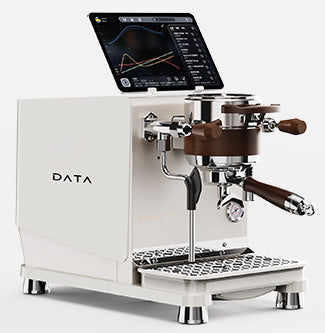

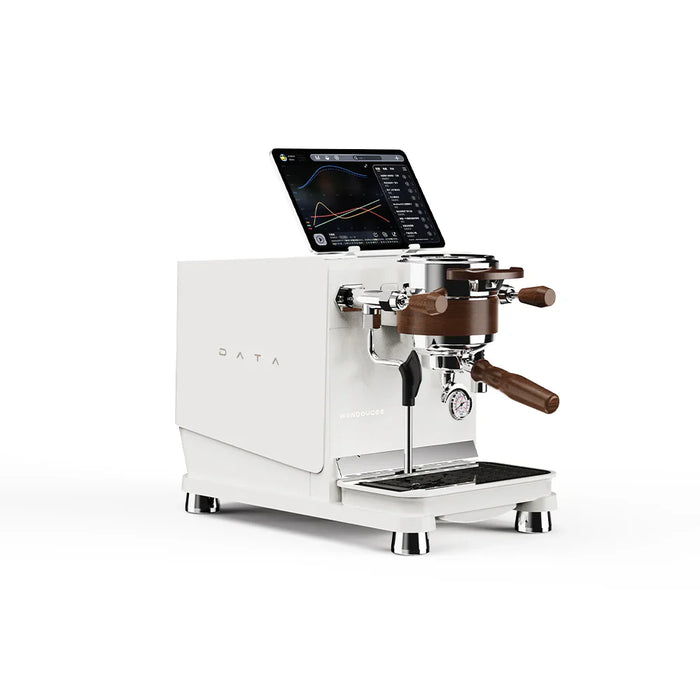

Tablet is optional: The base price does not include a tablet; total height depends on the device and stand position.
Commercial buyers: Confirm all locally required equipment certifications, electrical rules, plumbing rules and health-department requirements before purchase. Do not assume that residential suitability establishes commercial approval.
Data S Specifications
Electrical
110V, 2,200W, NEMA 5-20 plug; dedicated 20A circuit required
Brew boiler
0.8 L stainless steel
Steam boiler
1.8 L stainless steel
Pump
Wendougee gear pump
Reservoir
1.5 L
Water configurations
Tank Only or Direct Connect + Tank, depending on selected variant
Dimensions without tablet
11.4″ W × 19.25″ D × 14.6″ H
Approximate height with 10″ tablet
Approximately 20.5″; varies by device and positioning
Tablet
Optional; not included with base machine
Tank Only or Direct Connect + Tank?
Choose Tank Only when the machine will be filled manually and you do not plan to connect it to a permanent water supply. This is the simpler installation.

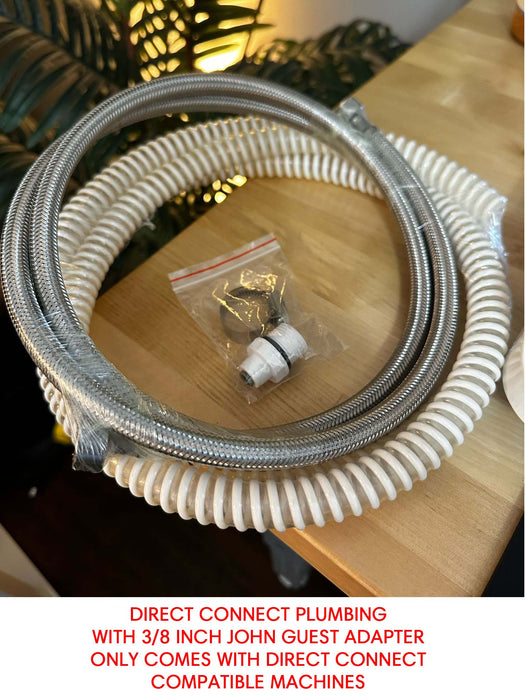

Choose Direct Connect + Tank when you want the option to use a properly prepared water line while retaining reservoir operation. Direct plumbing requires suitable espresso-equipment filtration, pressure management, an accessible shutoff valve, leak protection and a planned drain arrangement.
Before purchasing adapters, confirm the supplied machine connection and the thread used by the existing water line. Do not assume that a hose from another espresso machine will connect directly.
Reservoir or selected direct-connect configuration
Reservoir
Best fit
Larger boilers, advanced profiling and installation flexibility
Smaller home setup with pressure control at a lower price
Primary consideration
Dedicated 20A connection, greater depth and higher price
Smaller boilers and no direct-water option
Data S Electrical Connection
The receptacle should have the horizontal slot used by a NEMA 5-20 connection and must be served by correctly sized wiring and a 20A breaker. Receptacle appearance alone does not prove the circuit is suitable; consult a qualified electrician before ordering if there is any uncertainty.
Data S Support and Videos
Visit Wendougee USA for current brand information. Espresso Outlet provides support for machines purchased from Espresso Outlet. The Wendougee espresso community also contains owner discussions and availability updates.
Is the Wendougee Data S right for you?
Wendougee Data S Espresso Machine is most useful when its capacity, controls and day-to-day workflow align with the buyer’s priorities. It is a candidate for home baristas building a more consistent coffee workflow comparing heating design, temperature control, pump configuration, steam capacity and expected drink volume. Confirm every product-specific capacity, dimension, electrical and installation detail in the published specifications above.
Wendougee Data S buying considerations
Workflow fit: Decide whether its controls and dosing style match how often you switch coffees, recipes or drink types.
Capacity: Match the published capacity and duty cycle to your busiest expected period rather than your average use.
Installation: Verify counter space, power, water and clearance requirements from the specifications above.
Ownership: Include cleaning, routine maintenance and replacement wear items in the buying decision.
Compare the Wendougee Data S with related equipment
It is best suited for home baristas building a more consistent coffee workflow whose priorities match the specifications and workflow described above. Buyers with substantially different volume or installation needs should compare the related category before ordering.
What should I verify before installing the Wendougee Data S?
Confirm the listed voltage, circuit, water, drain and clearance requirements. Commercial installations should be reviewed with the installer before the machine ships.
What should I compare before choosing this espresso machine?
Compare warm-up routine, brew and steam capacity, temperature controls, water connection, maintenance access and the number of drinks made back to back.
What maintenance should be planned?
Follow the manufacturer’s cleaning schedule, use suitable water where applicable, keep the work area clean and replace normal wear components when performance changes.
Where can I get help choosing or setting up this model?
Espresso Outlet can help compare equipment, review application fit and explain the support and warranty terms that apply to this listing.
