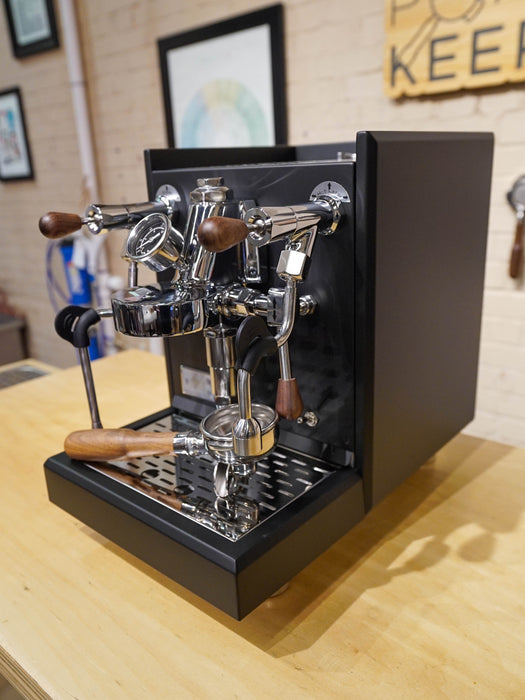

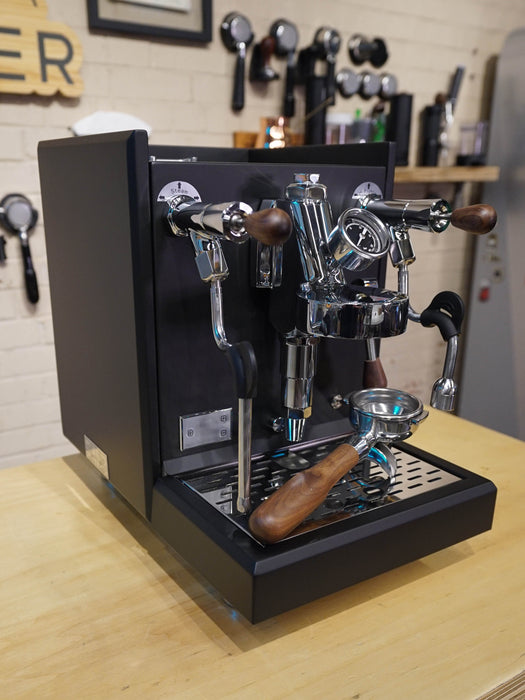

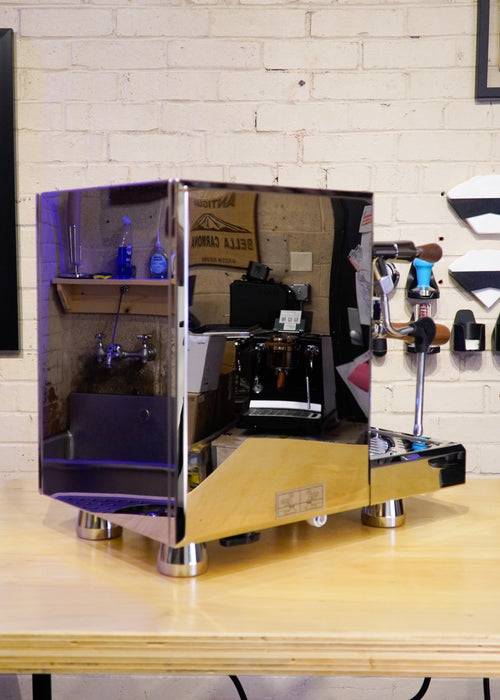

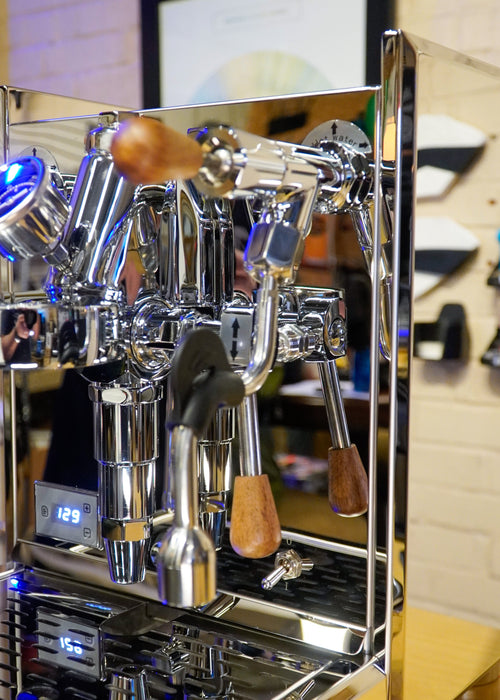

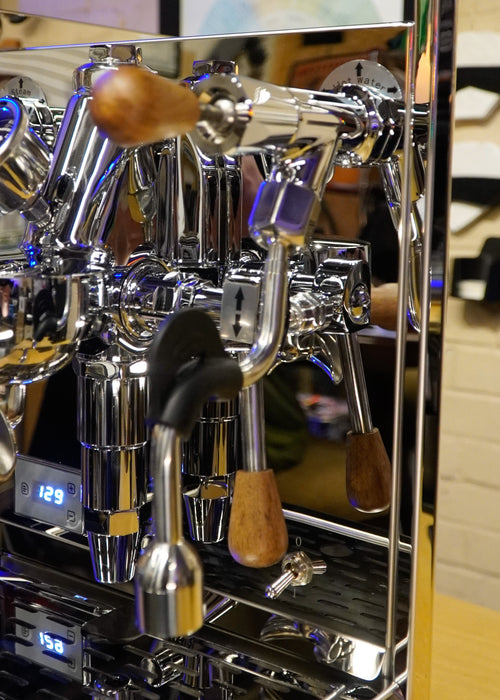

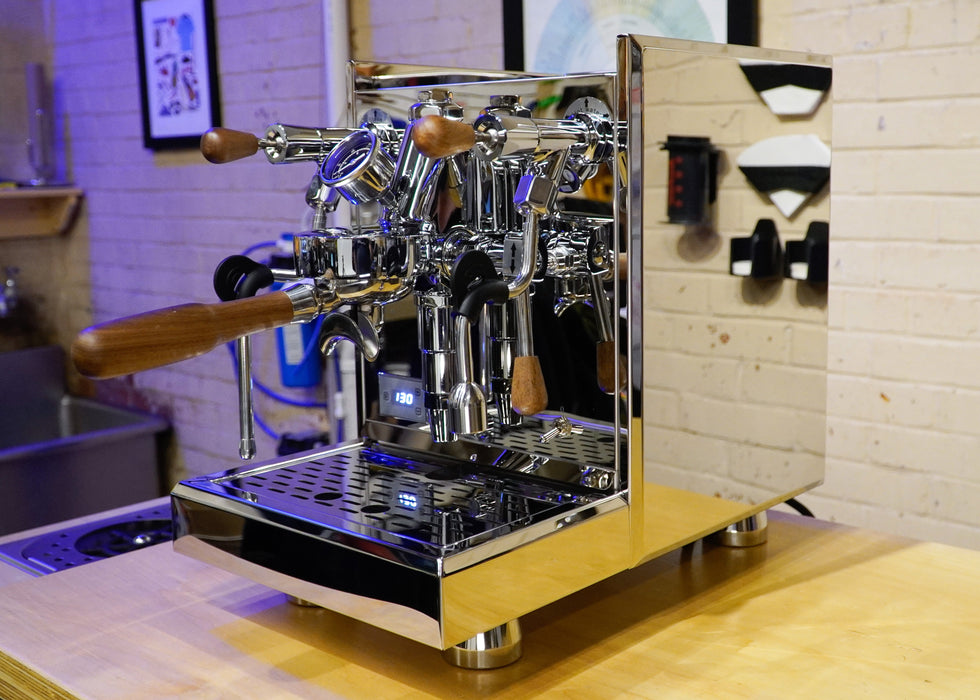

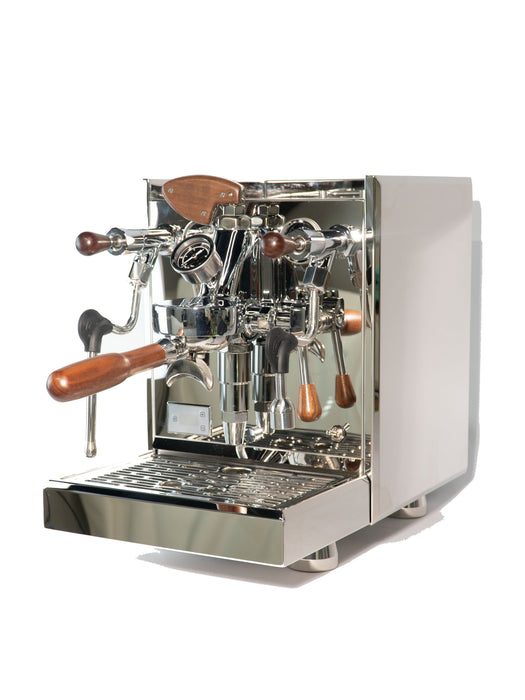

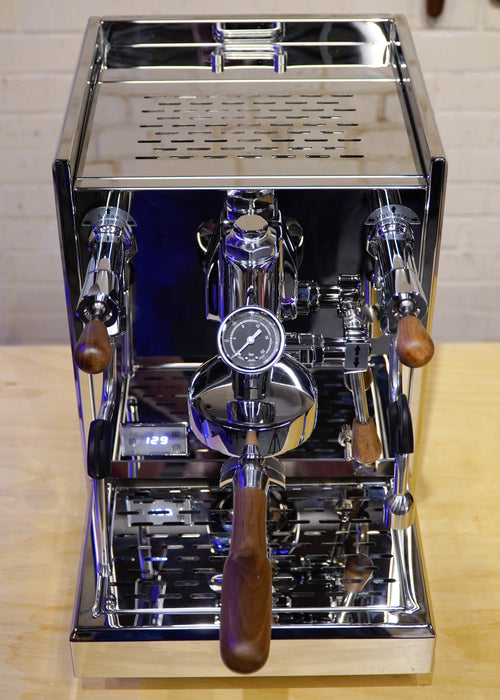

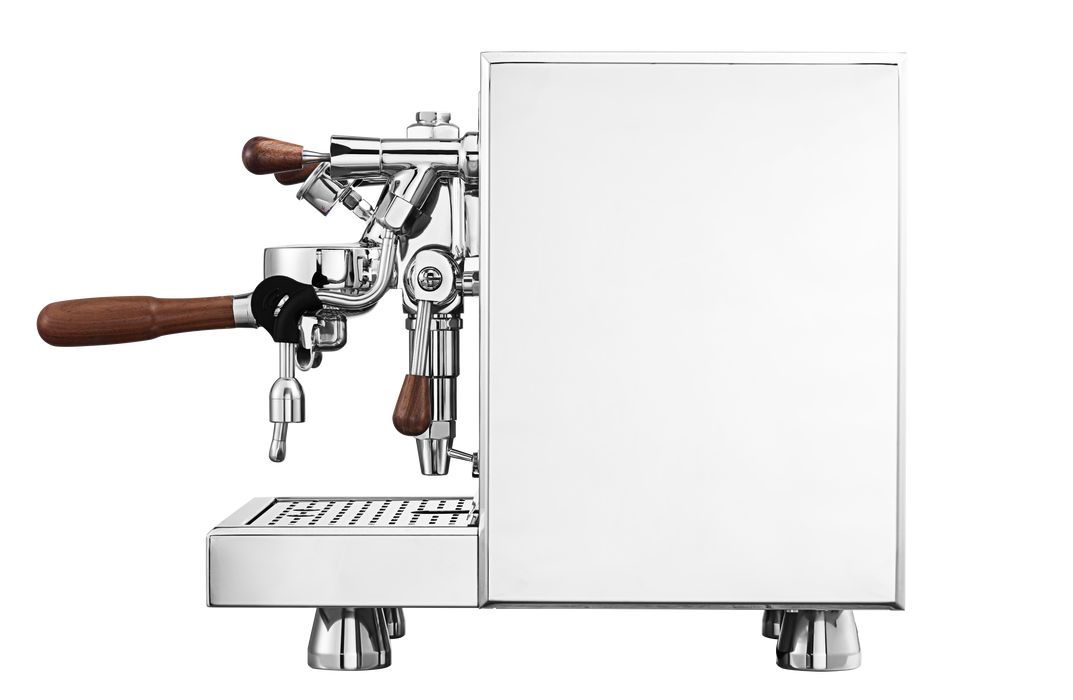

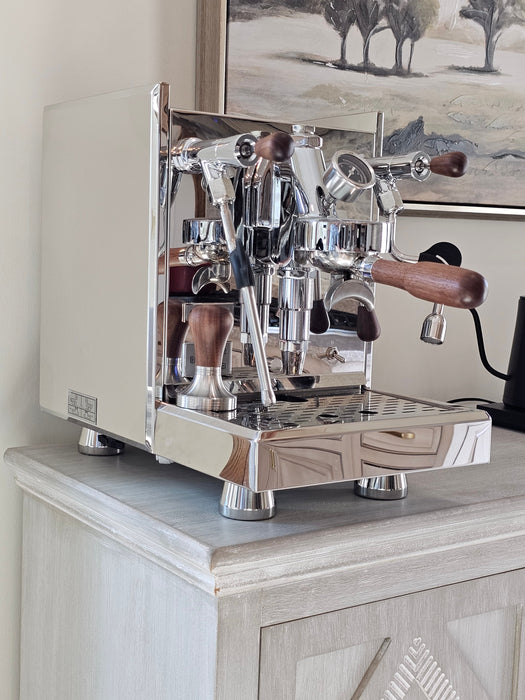

Turin Gallatin R Heat Exchange Espresso Machine with Rotary Pump, PID and Flow Control

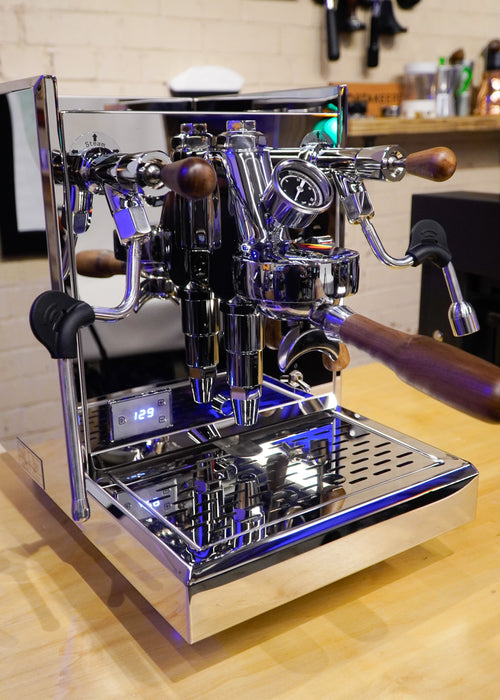

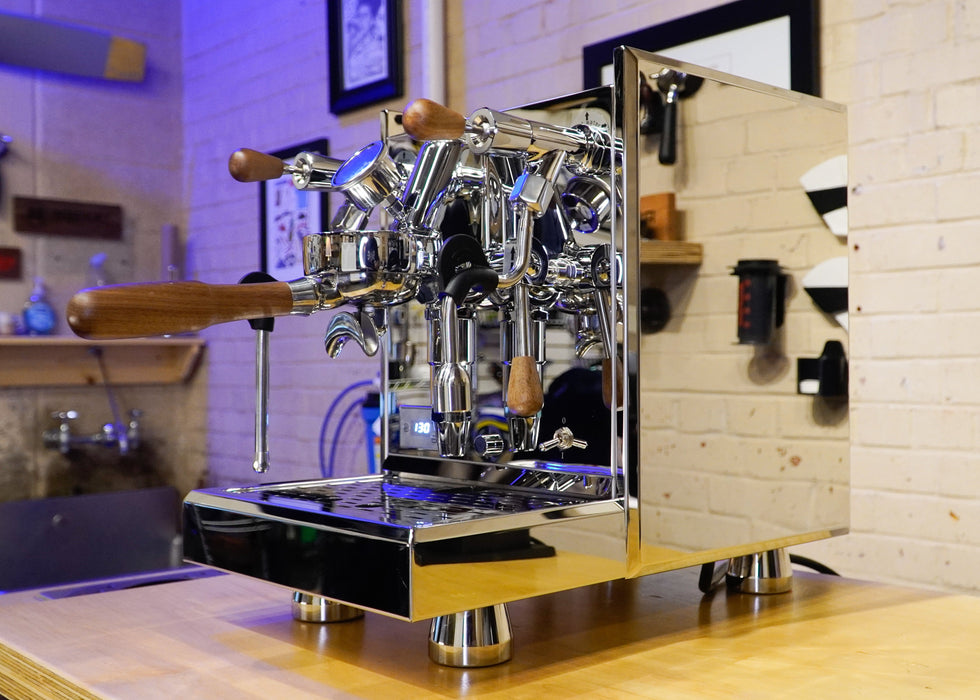

The Turin Gallatin R is a 58mm E61 heat-exchange espresso machine for buyers who want a rotary pump, manual flow control and tank-or-plumbed flexibility without moving to a dual boiler. Its 2-liter stainless steel HX boiler supports brewing and steaming at the same time, while PID-managed boiler temperature, programmable pre-infusion, a shot timer and group pressure gauge help create a repeatable routine.
The “R” separates this model from the vibration-pump Gallatin V. Its rotary pump produces a lower, smoother operating sound and is the better fit for a permanent water connection. The flow-control paddle adds direct control at the E61 group, letting you soften puck saturation or shape flow during a shot.
Why Choose the Gallatin R?
Rotary-pump E61 workflow
A commercial-style rotary pump provides steady pressure and quieter operation than the Gallatin V vibration pump. It is particularly useful when the machine will be connected to a treated water line.
Manual flow profiling

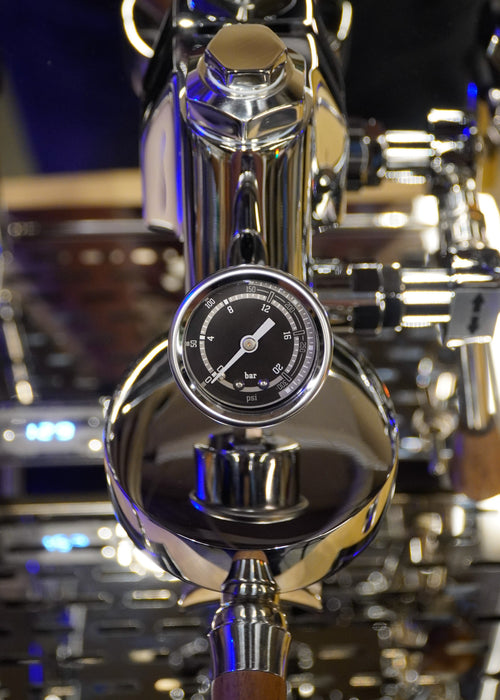

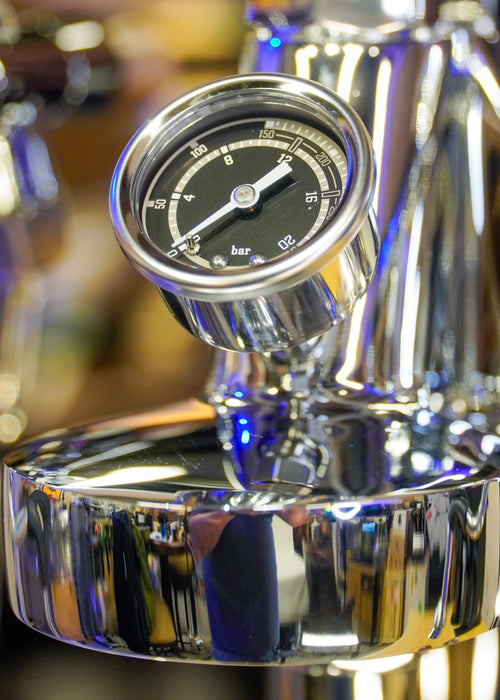

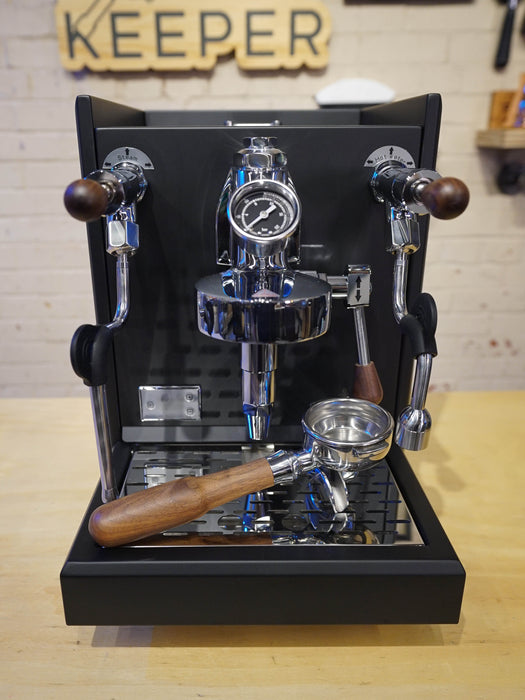

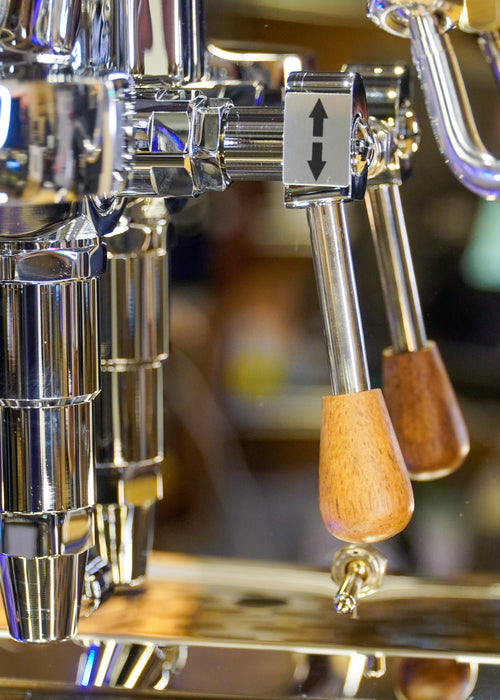

The group-mounted paddle changes water flow through the coffee bed. Pair it with the group pressure gauge and a brew scale to explore low-flow pre-infusion, full-flow extraction and tapered finishes.
2-liter heat-exchange boiler

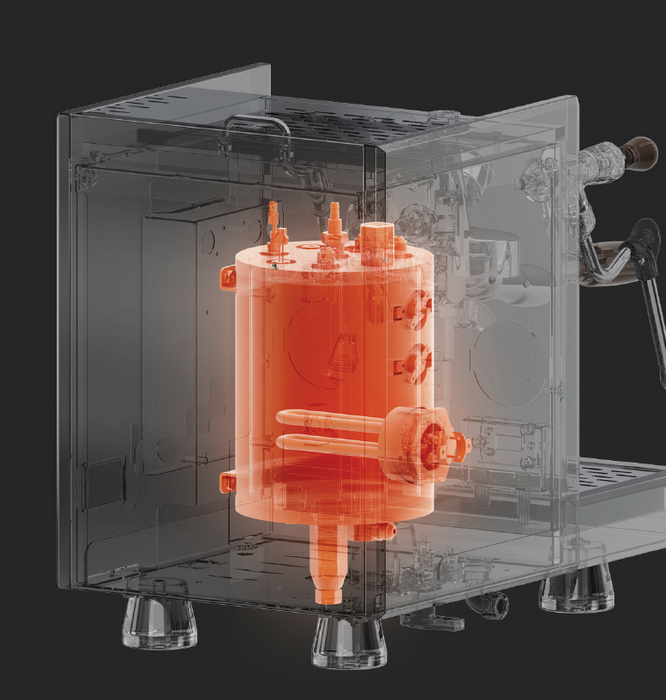

The HX system draws brew water through a heat exchanger inside the steam boiler, allowing brewing and steaming together. It offers strong milk-drink capacity from a single main boiler.

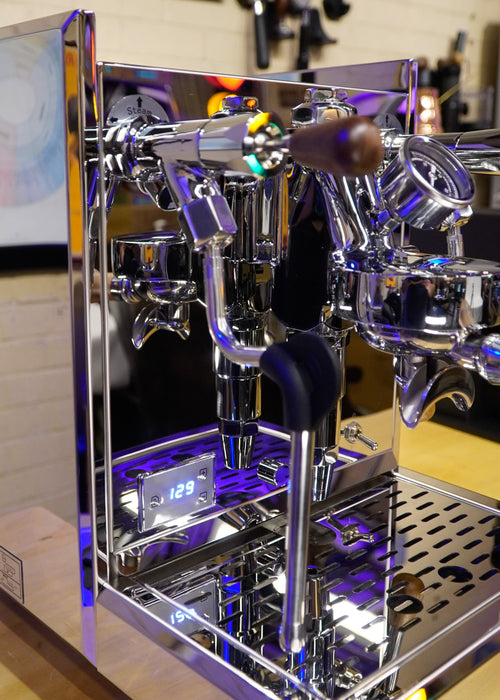

PID and programmable pre-infusion

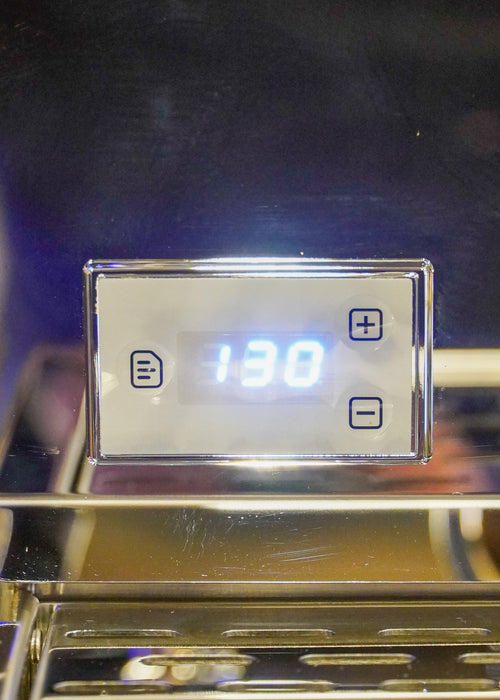

The display manages boiler temperature, pre-infusion timing, shot timing and economy functions. Because this is an HX machine, boiler setting and puck temperature are related but not identical; a consistent warm-up and flushing routine matters.

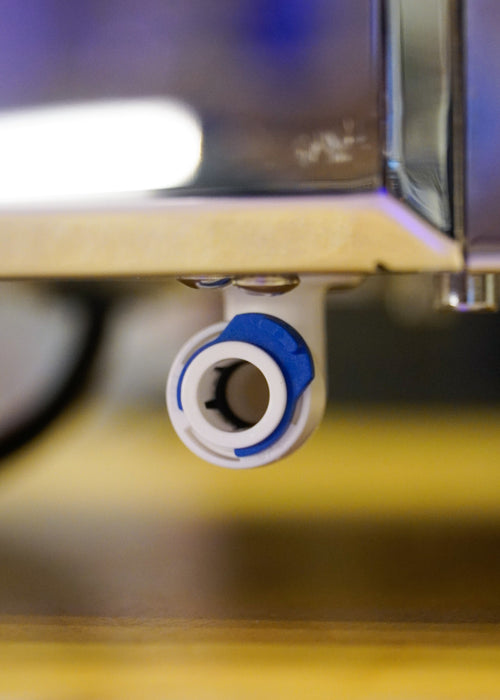

Reservoir, direct water and drain options

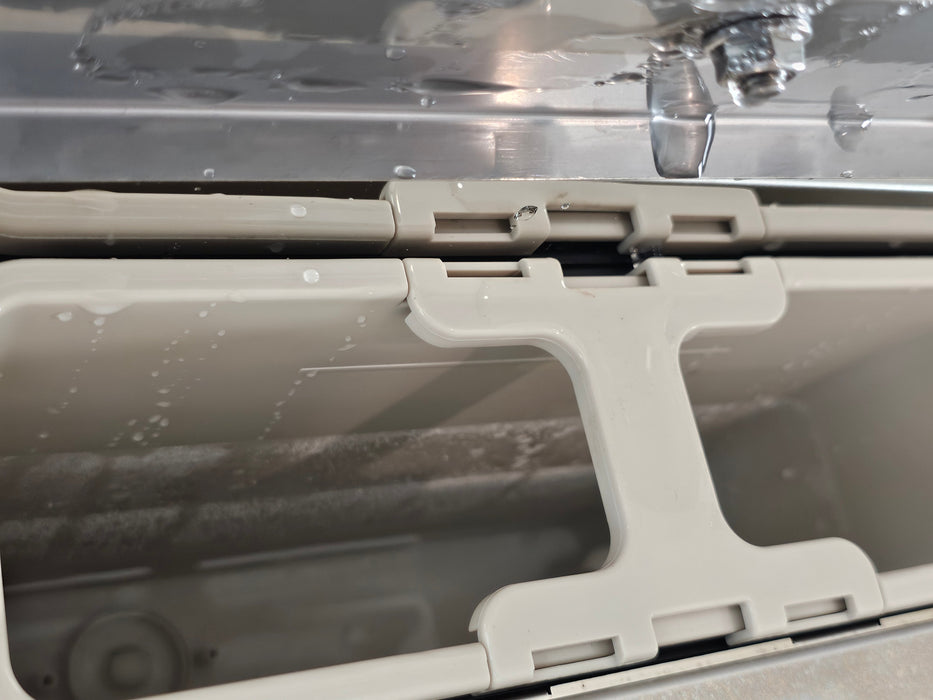

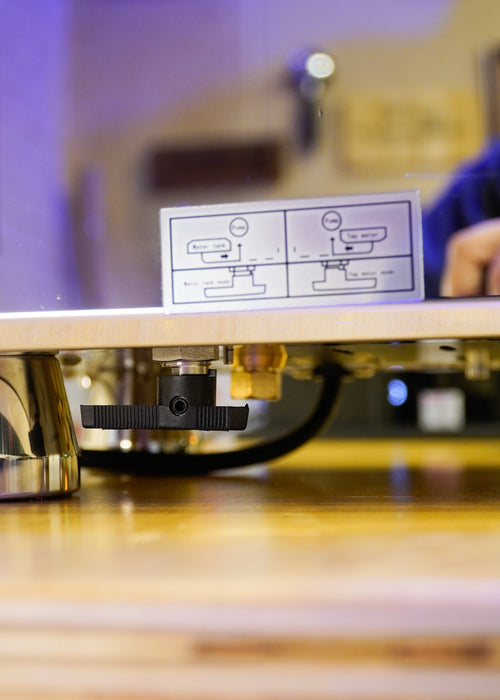

Use the 1.7-liter reservoir or switch to a direct water supply. The drip tray can also connect to a drain for a more permanent coffee-bar installation.
Turin Gallatin R Specifications
| Machine type |
Semi-automatic E61 heat-exchange espresso machine |
| Boiler |
2 L stainless steel heat-exchange boiler |
| Temperature |
PID-managed boiler with digital display |
| Pump |
Rotary pump |
| Flow control |

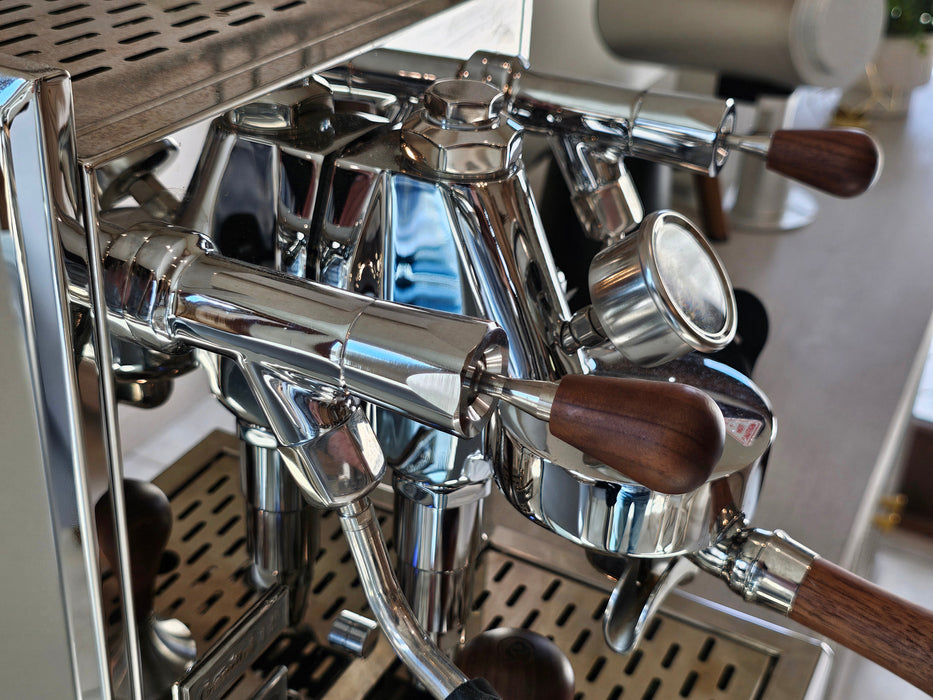

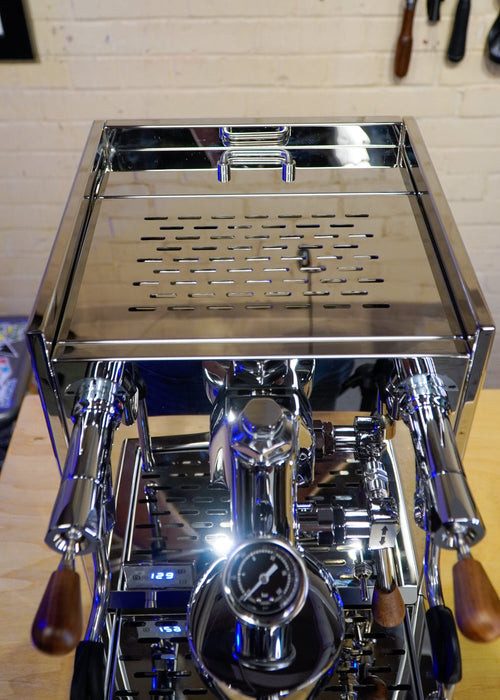

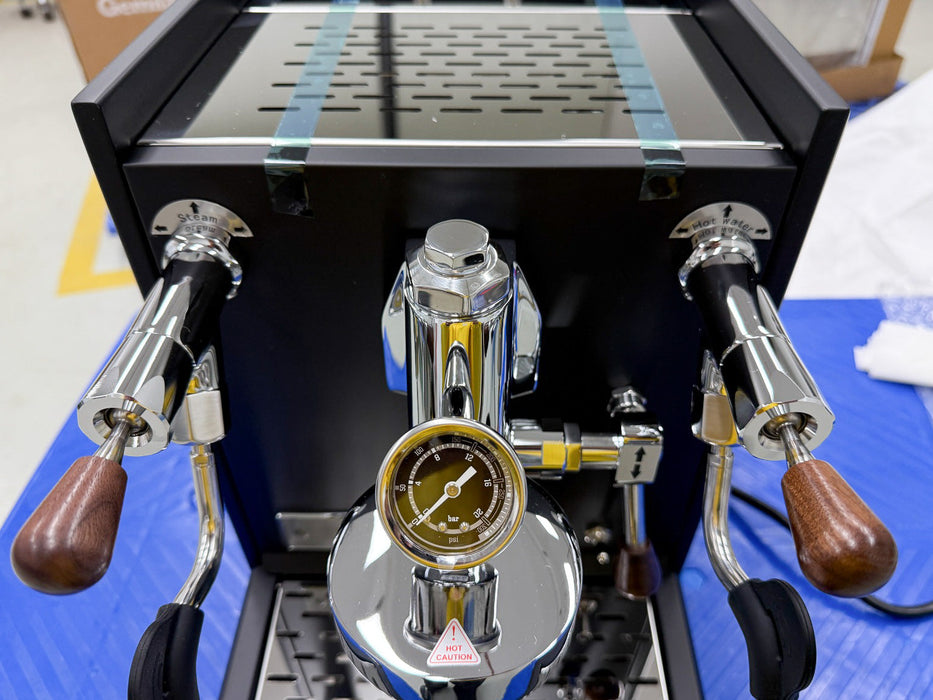

Manual E61 paddle with group pressure gauge |
| Water |
1.7 L reservoir or direct water connection |
| Drain |

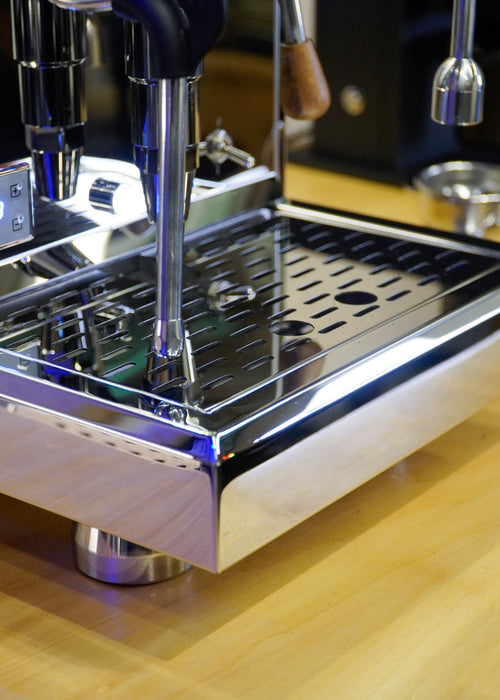

Drip tray supports a drain connection |
| Steam |

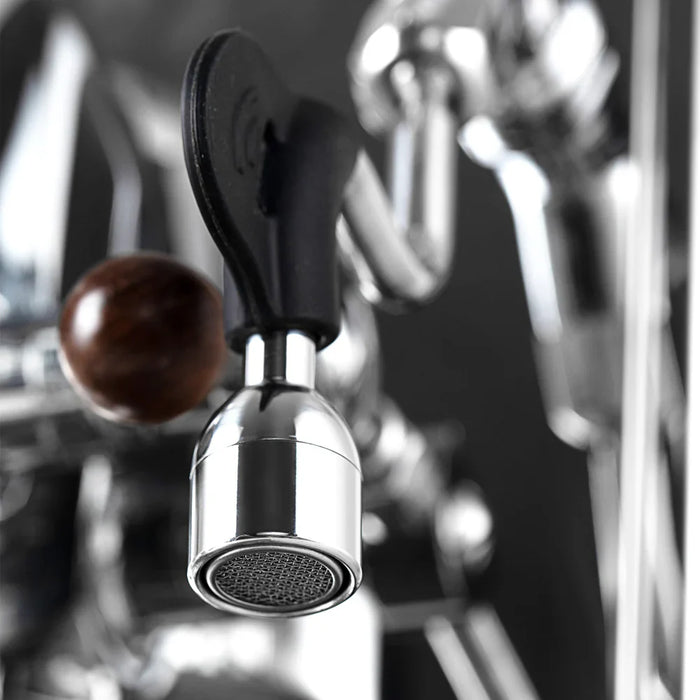

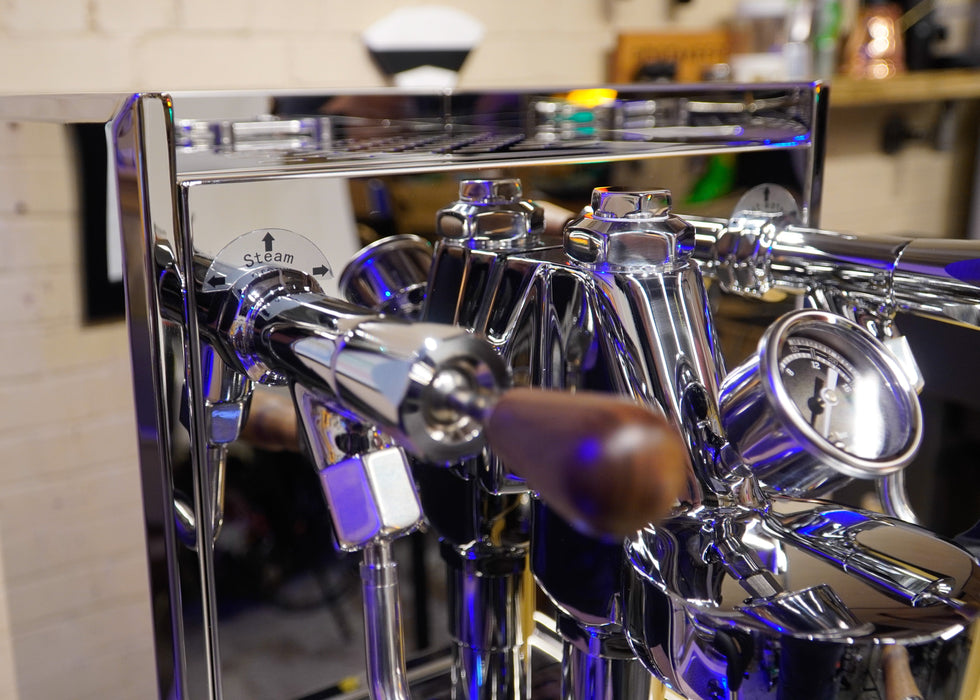

Joystick valve and three-hole steam tip |
| Portafilter |
58mm; single and double baskets included |
| Functions |
Adjustable pre-infusion, shot timer and economy settings |
| Dimensions |
11.26 in W × 17.44 in D × 15.55 in H |
| Weight |
Approximately 53.5 lb; shipping weight 65 lb |
| Electrical |
120V U.S. model |
How to Dial In the Gallatin R
Give the boiler, E61 group and locked-in portafilter time to heat fully. Start with a conventional recipe, weigh the dry dose and liquid yield, and use shot time as feedback rather than a goal by itself. If the shot runs fast, grind finer; if it chokes, grind coarser. Once the baseline is stable, introduce pre-infusion or paddle changes one at a time.
On an HX machine, the display does not report exact temperature at the puck. Group temperature, idle time, room conditions and flushing all influence delivery. Repeat the same warm-up and flush process, taste the espresso, and adjust gradually.
Gallatin V vs Gallatin R vs Gallatin DB
All three Gallatin machines use a 58mm E61 group and can brew while steaming. The meaningful differences are boiler architecture, pump type, direct-water suitability, flow control and temperature management.
| Buying factor |
Gallatin V |
Gallatin R |
Gallatin DB |
| Heating |
2 L HX boiler |
2 L HX boiler |
1 L brew + 1 L steam boilers |
| Pump |
Vibration |
Rotary |
Fluid-o-Tech rotary |
| Flow control |
No |
Yes |
Yes |
| Temperature workflow |
PID-managed HX; flushing and idle time matter |
PID-managed HX; flushing and idle time matter |
Independent brew-boiler and steam-boiler control |
| Water source |
Best suited to reservoir use |
Reservoir or properly prepared direct water |
Reservoir or properly prepared direct water |
| Best reason to choose it |
Lowest-price Gallatin E61 workflow |
Rotary-pump quietness, plumbing and profiling without dual-boiler cost |
Independent temperatures and maximum control |
| Main tradeoff |
Vibration-pump sound and no profiling paddle |
HX temperature management rather than an independent brew boiler |
Higher cost and more controls than some users need |
Which Gallatin should you buy?
Choose the Gallatin V for the most affordable E61 HX machine in the family. Choose the Gallatin R when rotary-pump operation, direct plumbing and flow control are the priorities. Choose the Gallatin DB when independent brew and steam temperatures justify the additional cost.
What Comes in the Box?
- Turin Gallatin R espresso machine
- 58mm double-spout portafilter
- Single and double baskets
- Walnut-handled tamper
- Cleaning and current connection accessories
- Instruction materials
Who Should Buy the Gallatin R?
Choose the R if you want HX milk-drink throughput, prefer rotary-pump quietness, plan to plumb the machine, or want to learn flow profiling. Choose the Gallatin V if value matters more than a rotary pump and paddle. Choose the Gallatin DB if independent brew and steam boiler temperatures are the priority.
Water and Maintenance
Use water formulated for espresso equipment, with limited scale-forming hardness but enough mineral content for flavor and reliable sensing. A plumbed installation needs suitable treatment, pressure management and leak protection. Purge and wipe the steam wand after use, rinse the group and basket daily, backflush with water regularly and use detergent according to the manual. Contact Espresso Outlet before internal service or aggressive descaling.
Direct-Water Installation Checklist
- Use filtration selected for the local water chemistry and espresso-equipment requirements.
- Provide appropriate pressure management, an accessible shutoff valve and leak protection.
- Confirm the machine connection before purchasing adapters; a hose from another machine may not connect directly.
- Plan a safe drip-tray drain route before placing the machine permanently.
- Verify local plumbing and electrical requirements for the installation location.
Complete Your Setup
Explore Turin espresso machines, compare E61 espresso machines and flow-control machines, or pair the Gallatin R with a grinder from the Turin grinder collection or home grinder collection.
Frequently Asked Questions
Is the Gallatin R a dual boiler?
No. It uses one 2-liter heat-exchange boiler. The HX design still supports simultaneous brewing and steaming.
Does it use a rotary pump?
Yes. The rotary pump is the central difference between the Gallatin R and vibration-pump Gallatin V.
Can it connect to water and drain lines?
Yes. It switches between reservoir and direct water, and the drip tray supports a drain. Use proper treatment and installation.
Does the PID show exact brew temperature?
No. The PID manages the HX boiler. Temperature at the puck also depends on the heat exchanger, E61 group, idle time and flush routine.
How does flow control help?
It changes water flow into the group. Many users apply low flow during saturation, open the paddle for the main extraction and taper near the end.
What size portafilter does it use?
It uses a 58mm portafilter and includes single and double baskets.
How long should it warm up?
Allow a complete E61 heat soak so the group, portafilter and cups stabilize, not just the boiler.
What water should I use?
Use scale-conscious espresso water. For plumbing, install an appropriate filtration or treatment system.
Is a grinder included?
No. An espresso-capable grinder with fine adjustment is required.
What warranty is included?
A one-year Espresso Outlet warranty and support are included for machines purchased from Espresso Outlet.
Is this the U.S. version?
Yes. This is a 120V machine for U.S. use and ships to U.S. addresses only.
