Current V2 model: This listing is for the updated V2 configuration. It is a 120V machine for U.S. use, ships to U.S. addresses only, and includes a one-year Espresso Outlet warranty and support for units purchased here. Current finishes and availability are shown above.

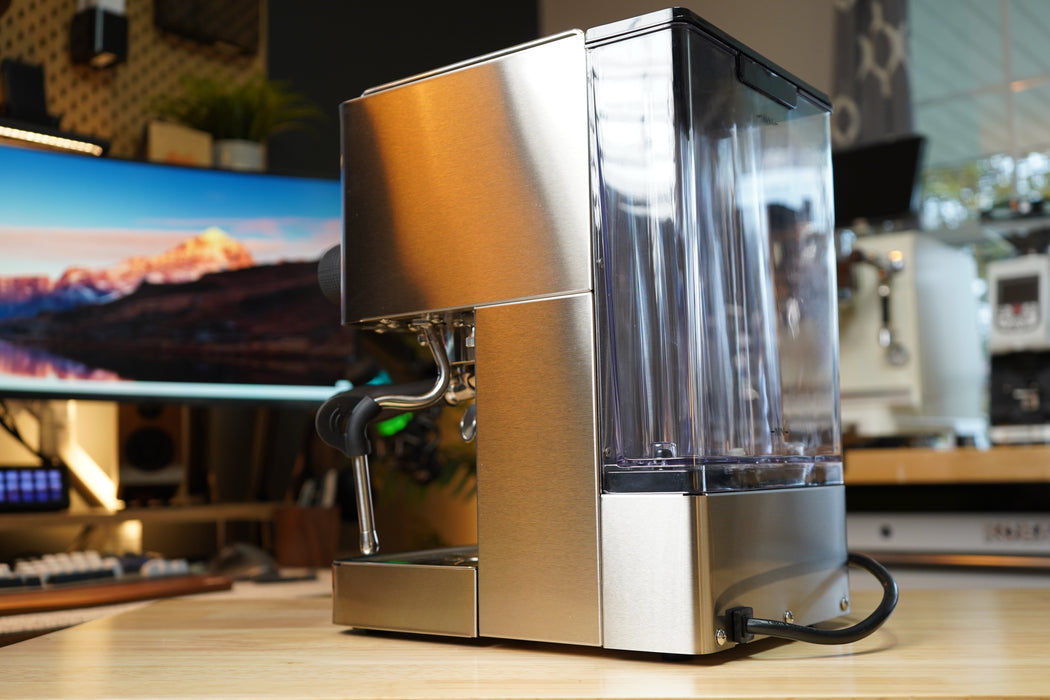

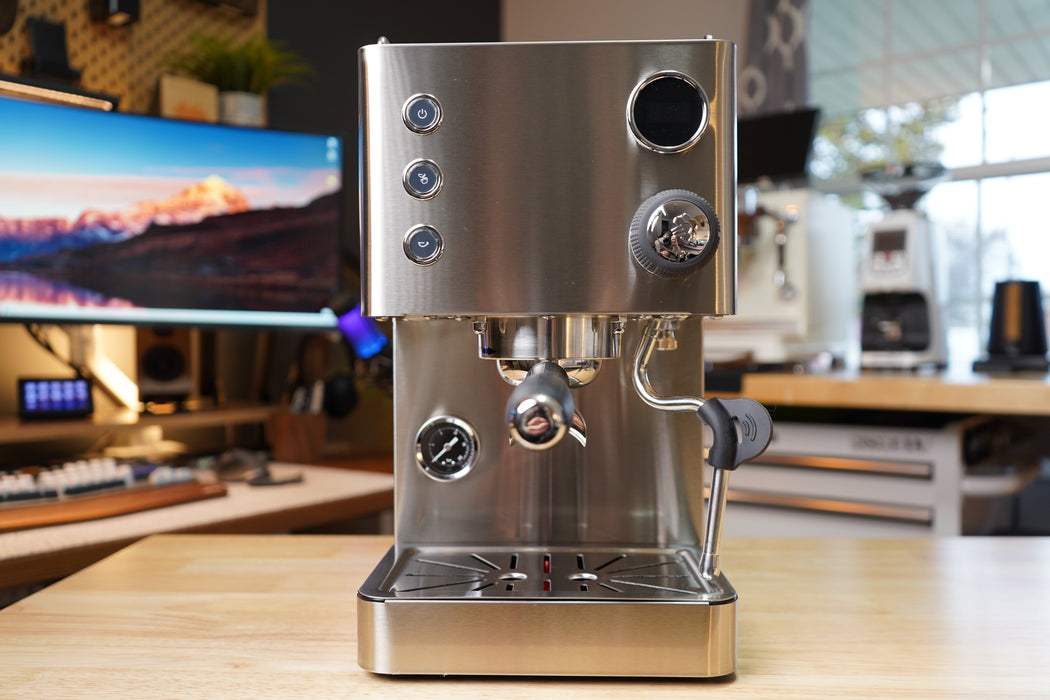

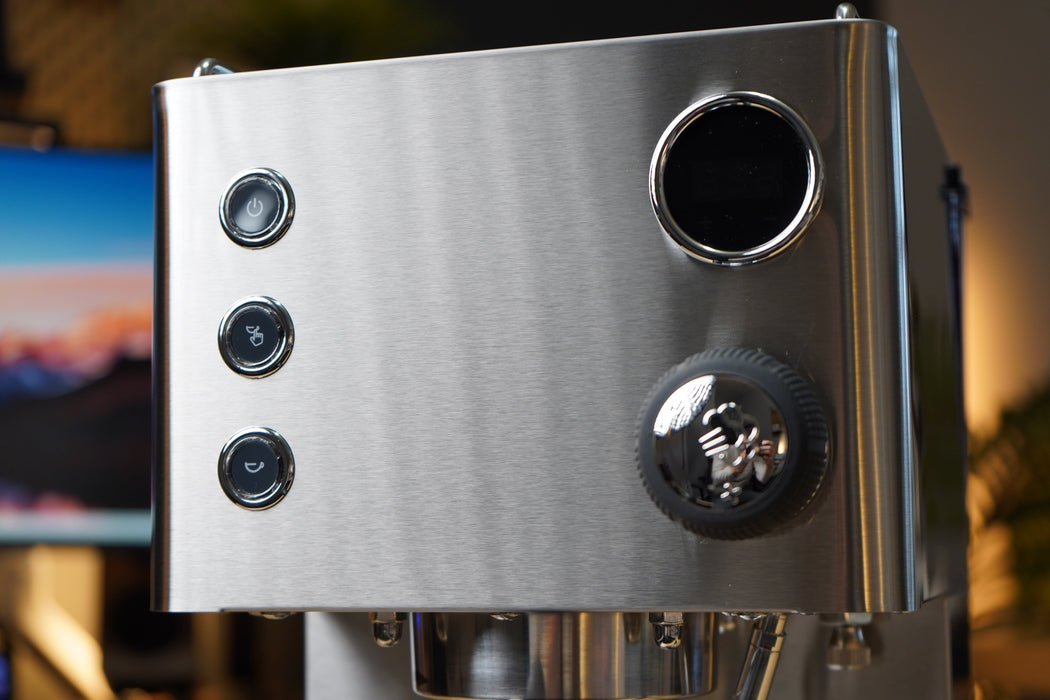

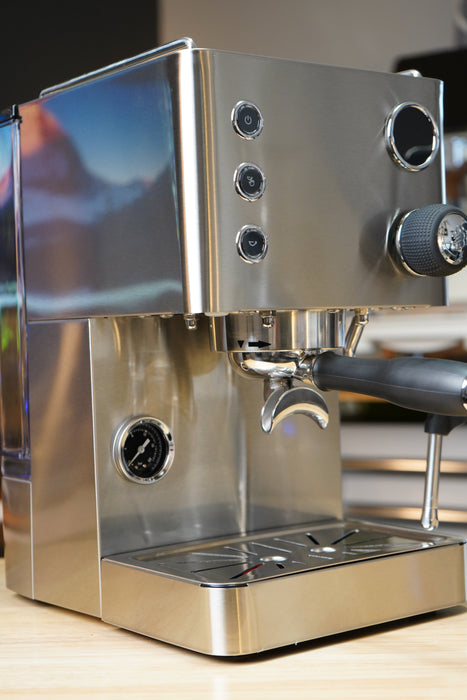

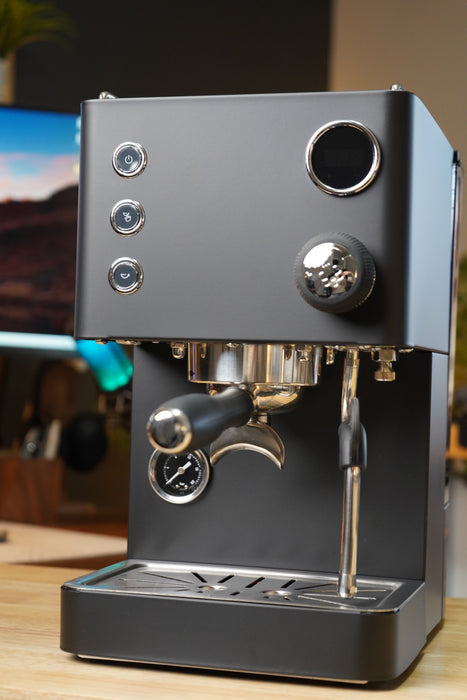

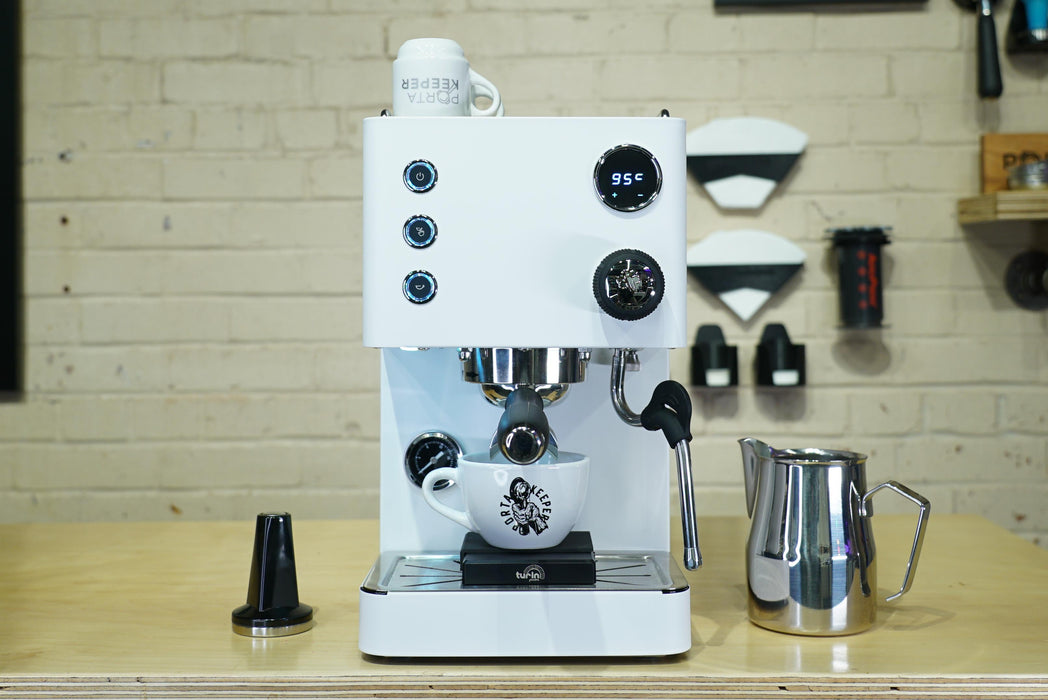

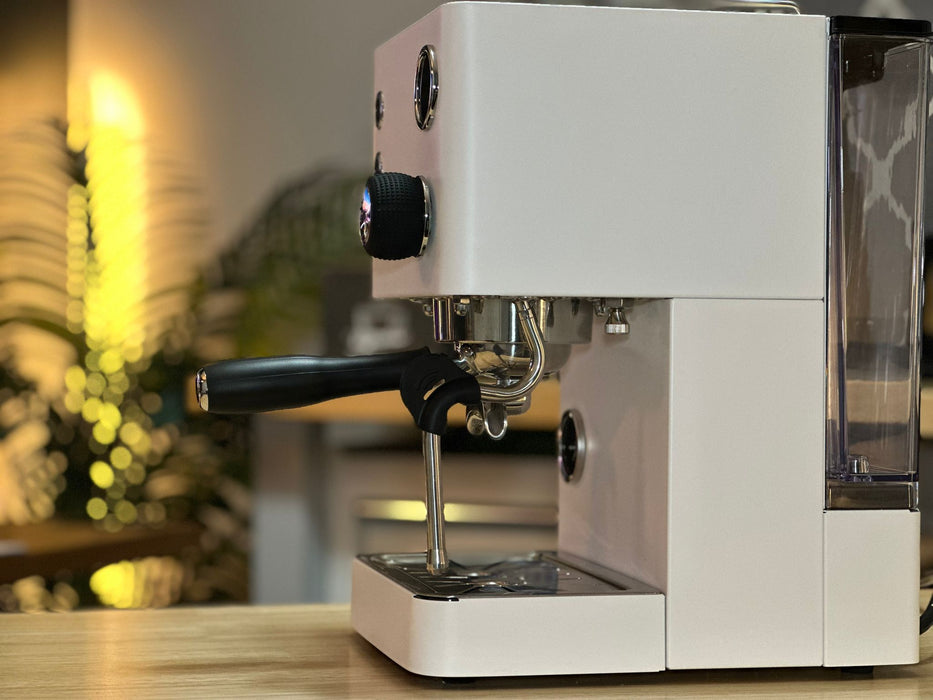

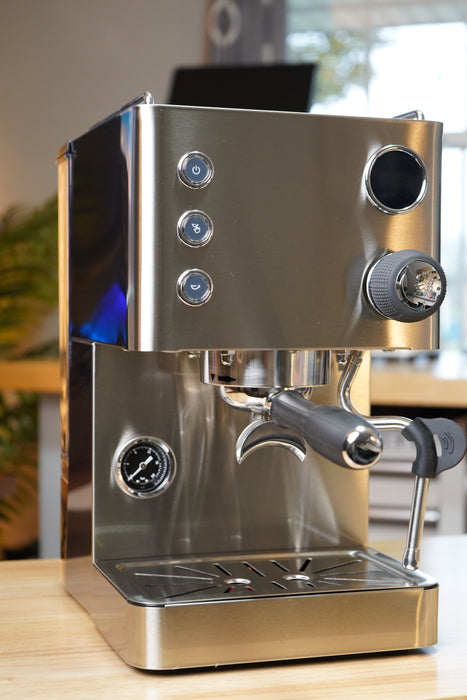

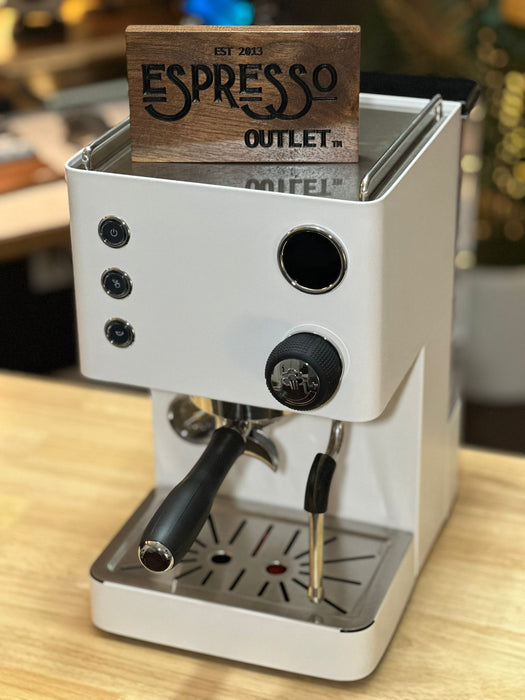

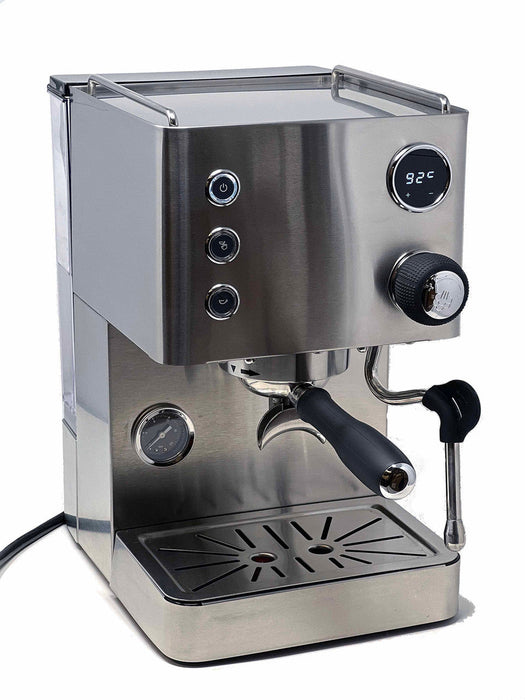

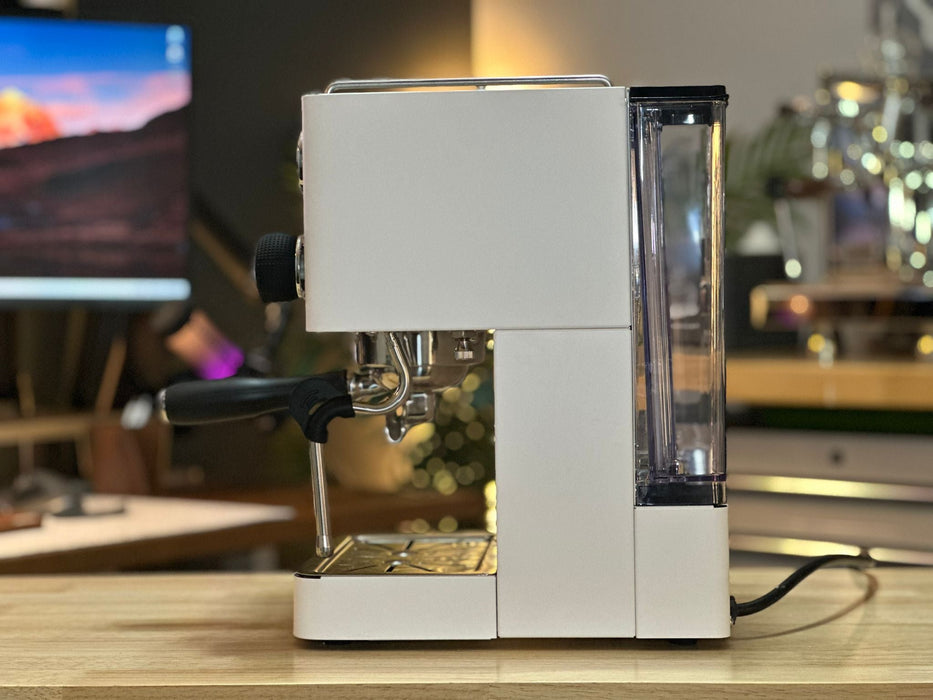

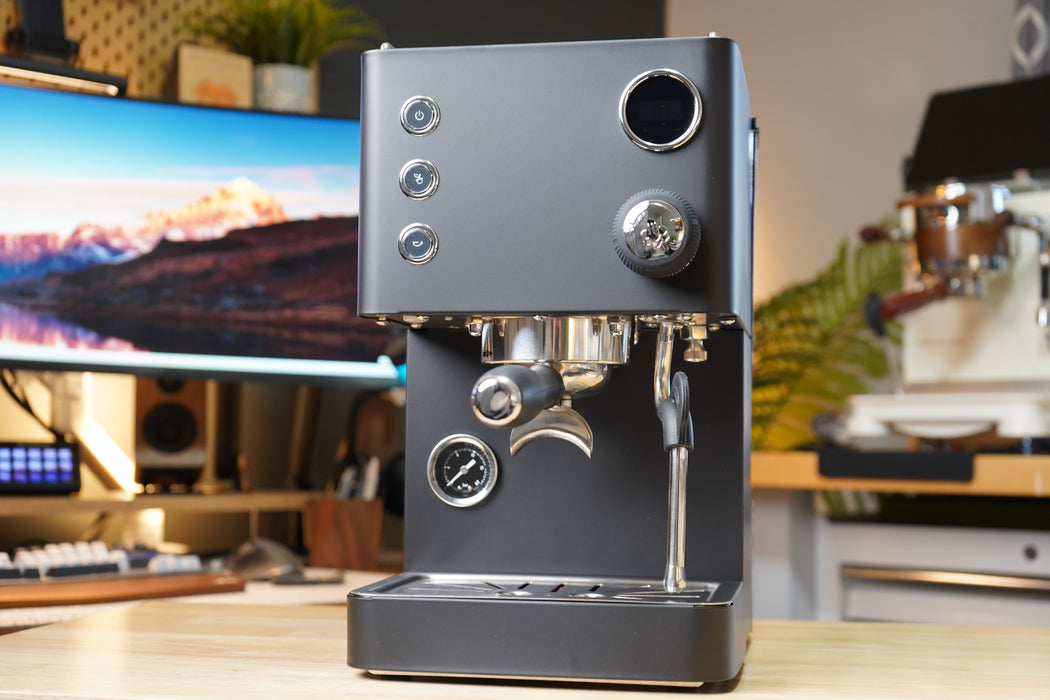

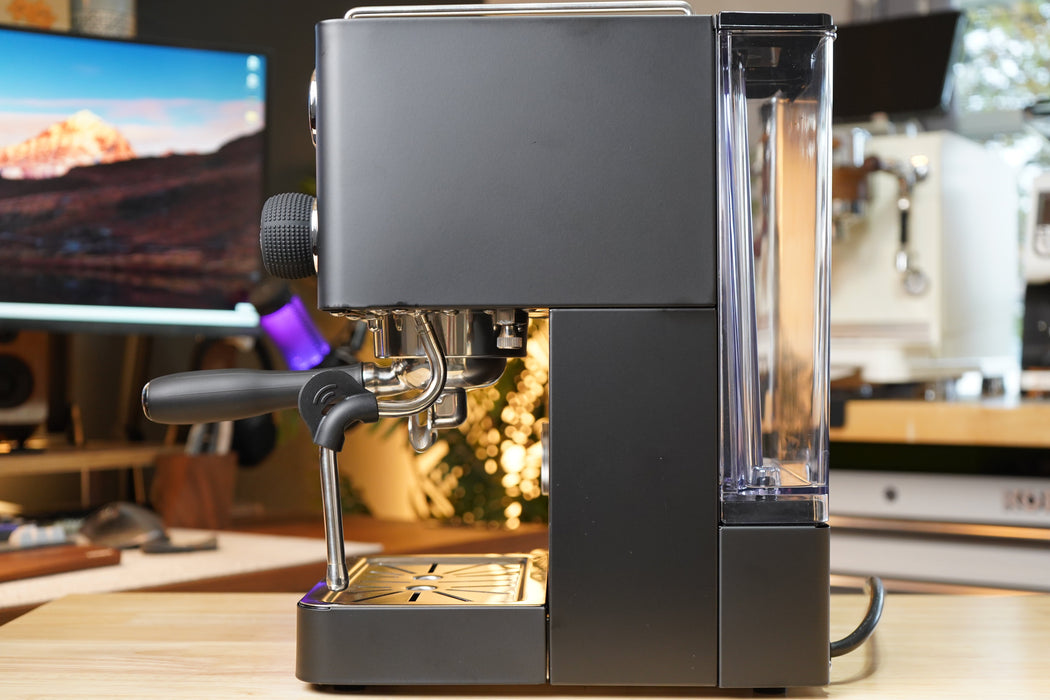

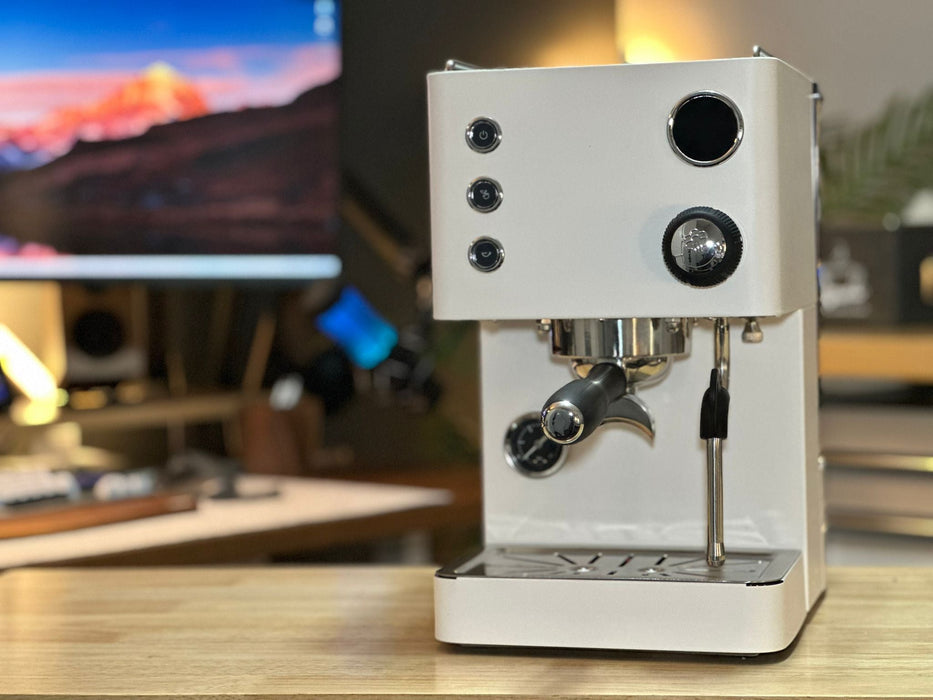

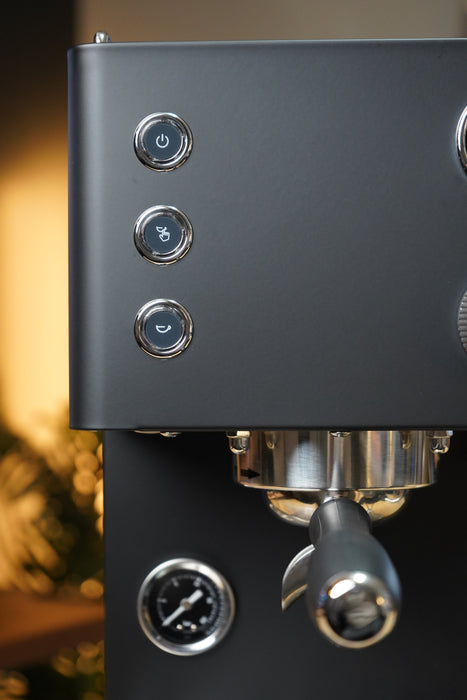

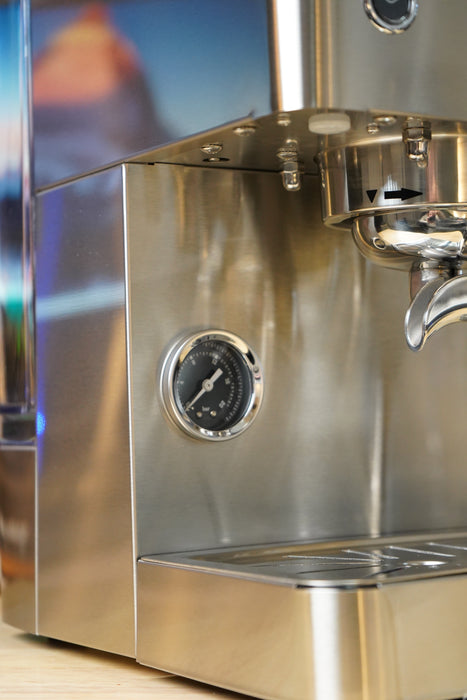

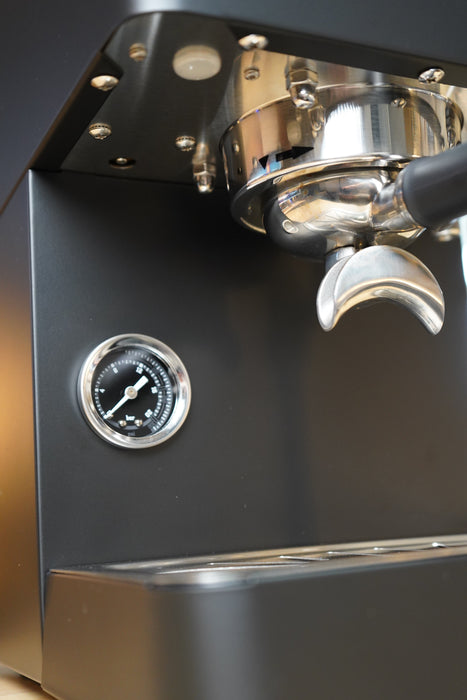

Turin Legato V2 Espresso Machine with Dual PID and 58mm Portafilter
The Turin Legato V2 is a compact home espresso machine built around a 550ml stainless steel brew boiler and a separate steam thermoblock. This hybrid design provides temperature-controlled brewing and quick access to steam without the footprint or price of a large E61 machine. A standard 58mm portafilter, adjustable OPV, dual PID settings and programmable pre-infusion make the V2 unusually flexible for its class.

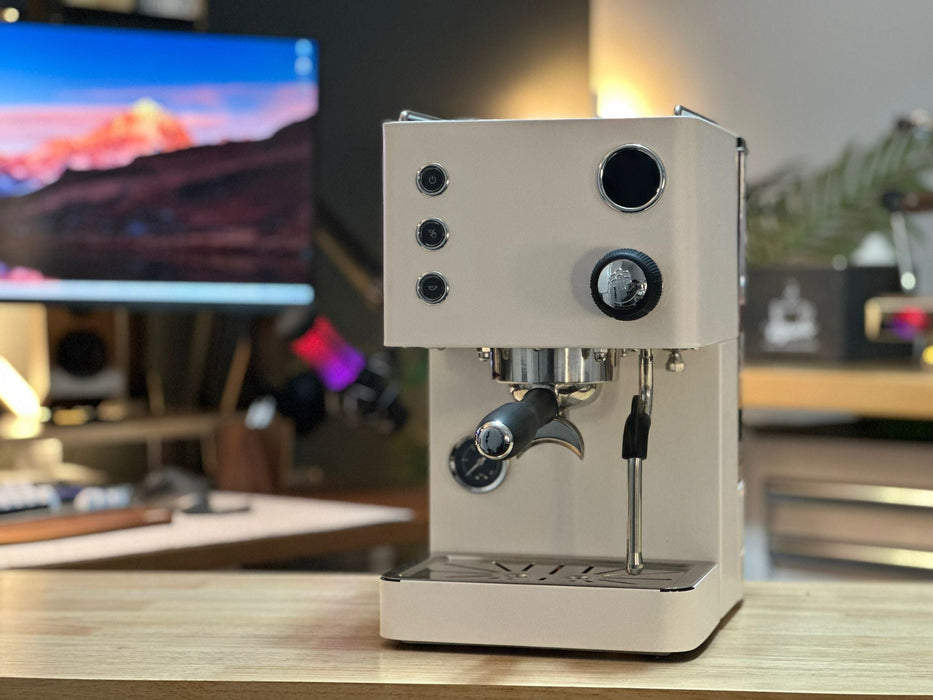

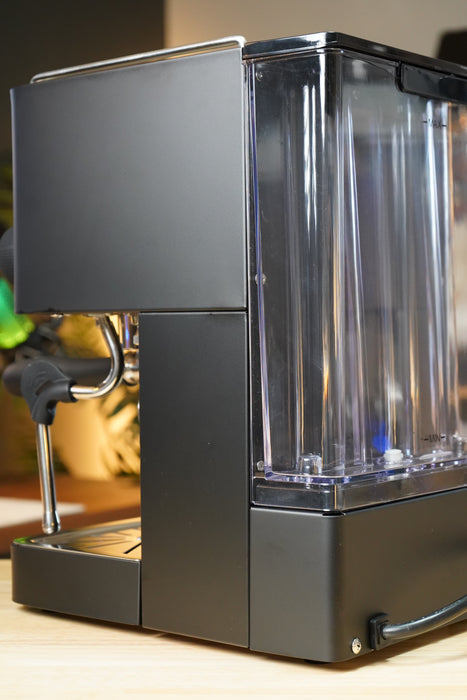

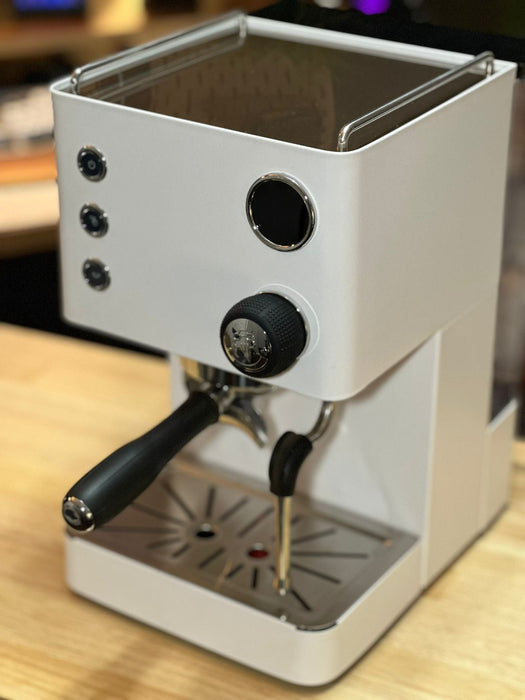

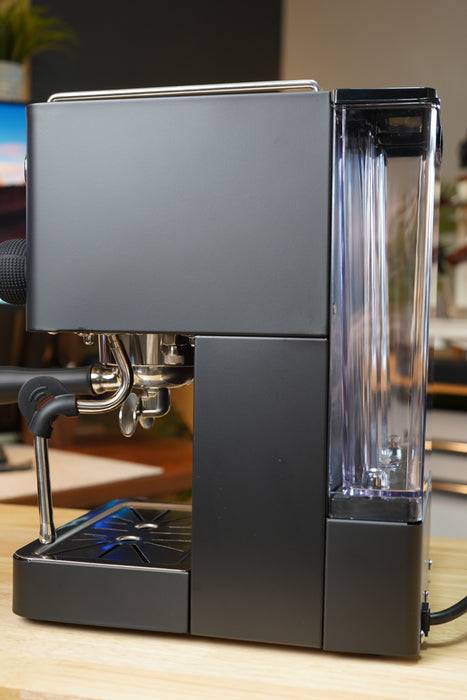

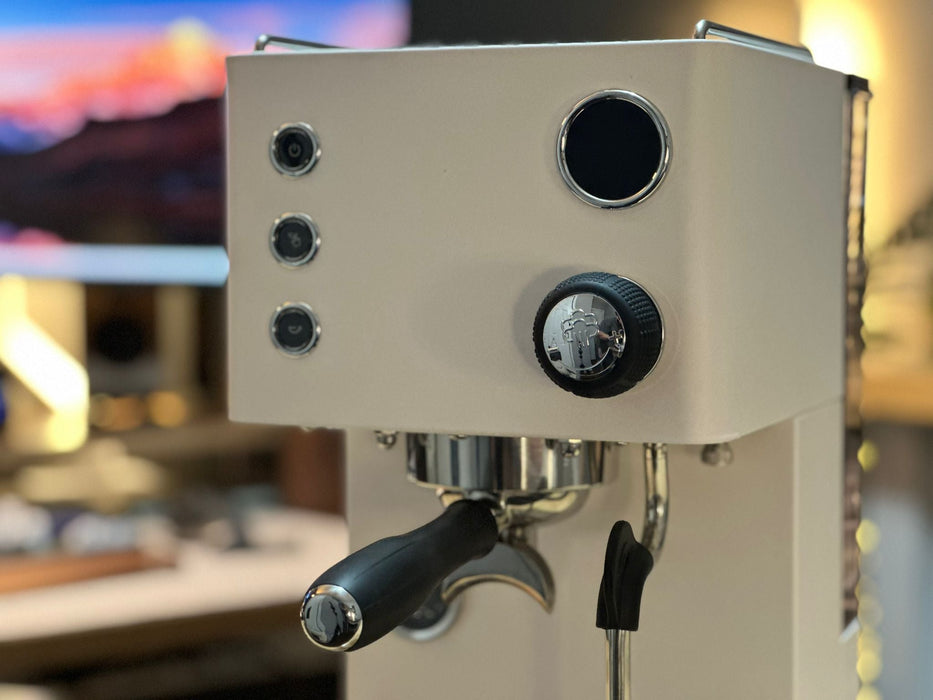

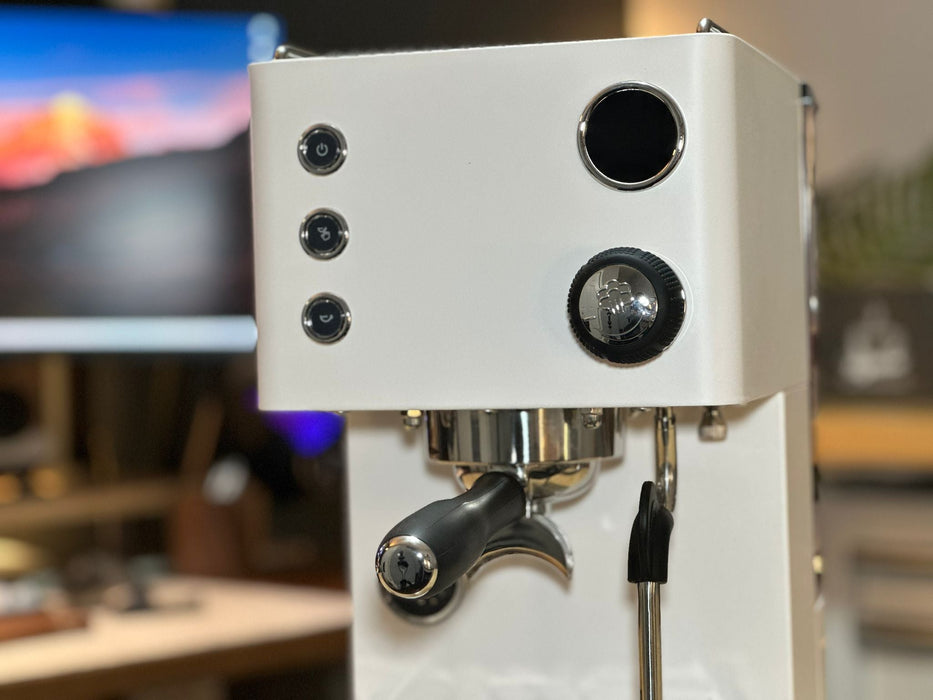

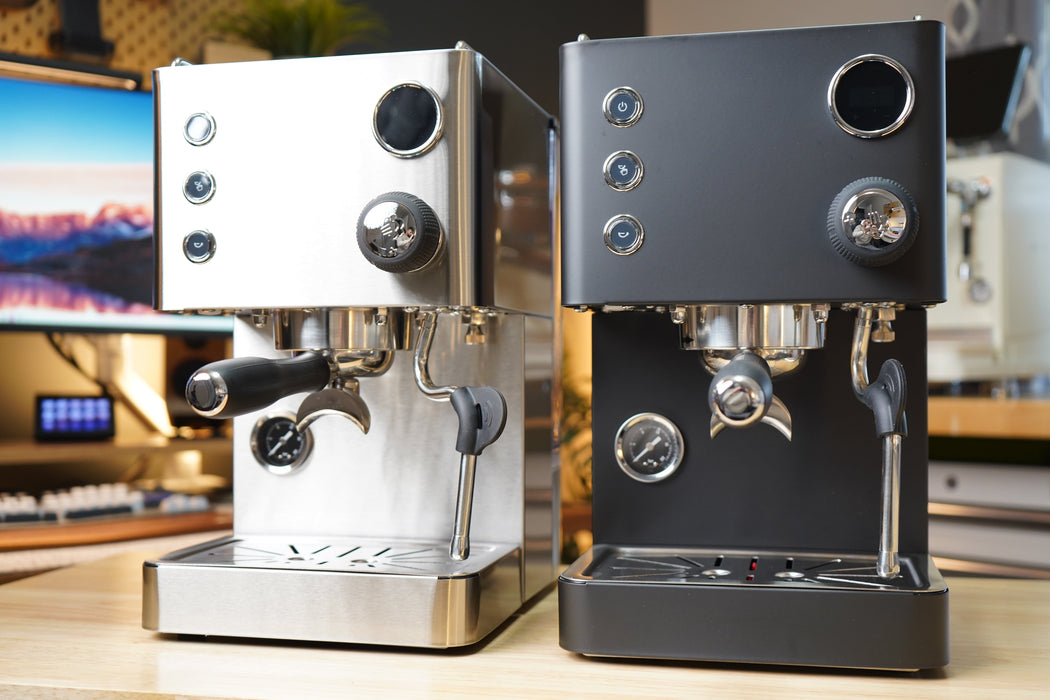

Version 2 adds the controls buyers asked for: an externally adjustable OPV control screw, independent brew and steam temperature settings, and adjustable pre-infusion time and delay. Stainless steel, black and white finishes are offered as current inventory allows.
Why Choose the Legato V2?
Brew boiler plus steam thermoblock

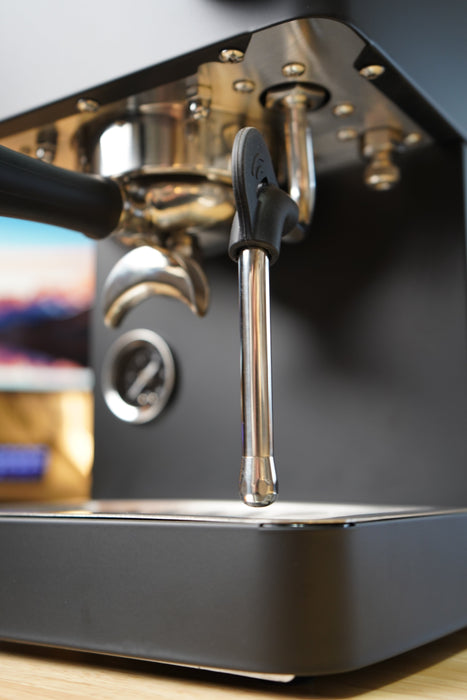

The 550ml brew boiler provides a stable reservoir for espresso water, while the separate thermoblock heats for milk steaming. You do not need to switch a single boiler from brew temperature to steam temperature.

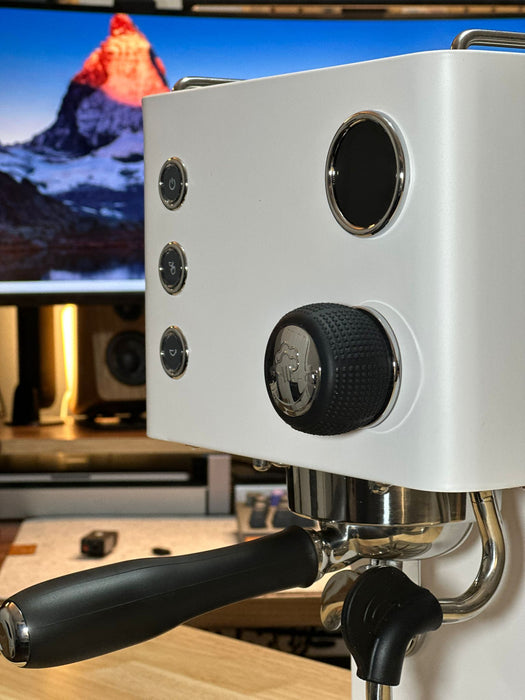

Dual PID settings
Set the brew and steam systems independently. Brew temperature can be matched to different coffees, while steam adjustment lets you tailor milk-texturing performance.
Adjustable OPV and pre-infusion
V2 provides an accessible OPV adjustment plus programmable pre-infusion time and delay. These are useful tuning tools, but they do not replace a correct grind, dose and puck preparation.
Standard 58mm ecosystem

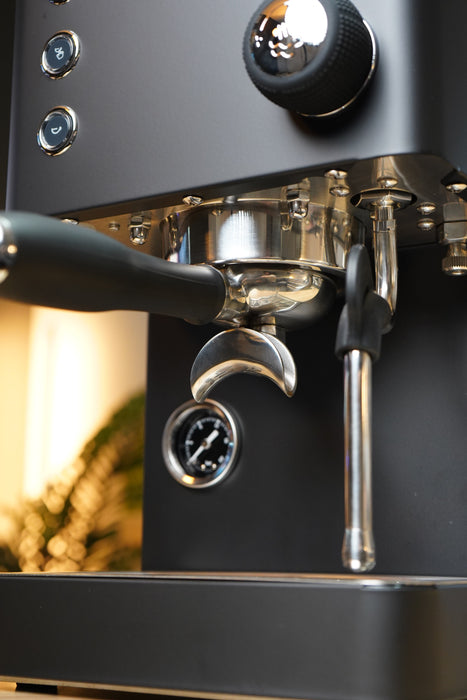

The stainless 58mm portafilter format accepts a wide range of baskets, tampers, puck screens and preparation accessories commonly used on prosumer machines.
Fast, compact routine

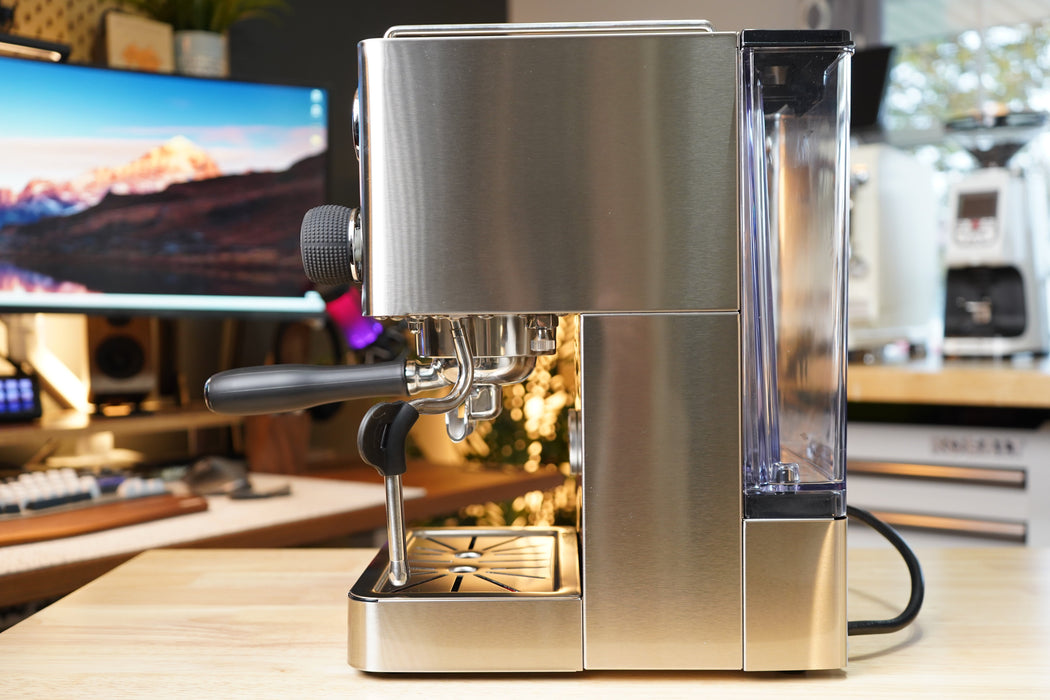

The listed warm-up is about five minutes, and the narrow 8.75-inch body fits counters where a full-size E61 machine may be difficult.
Turin Legato V2 Specifications
| Machine type |
Semi-automatic home espresso machine |
| Brew system |
550ml stainless steel brew boiler |

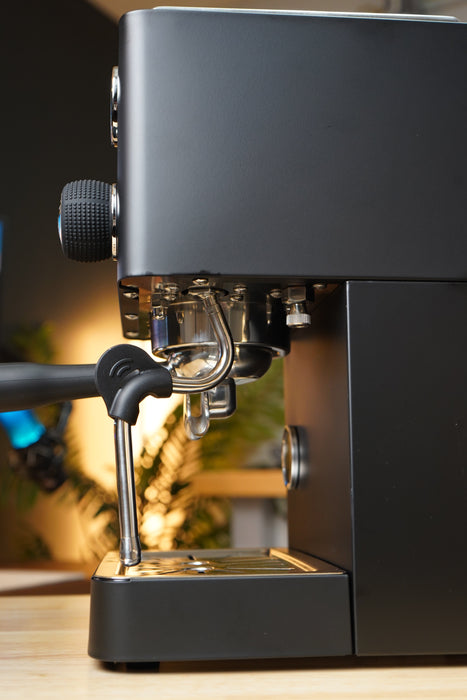

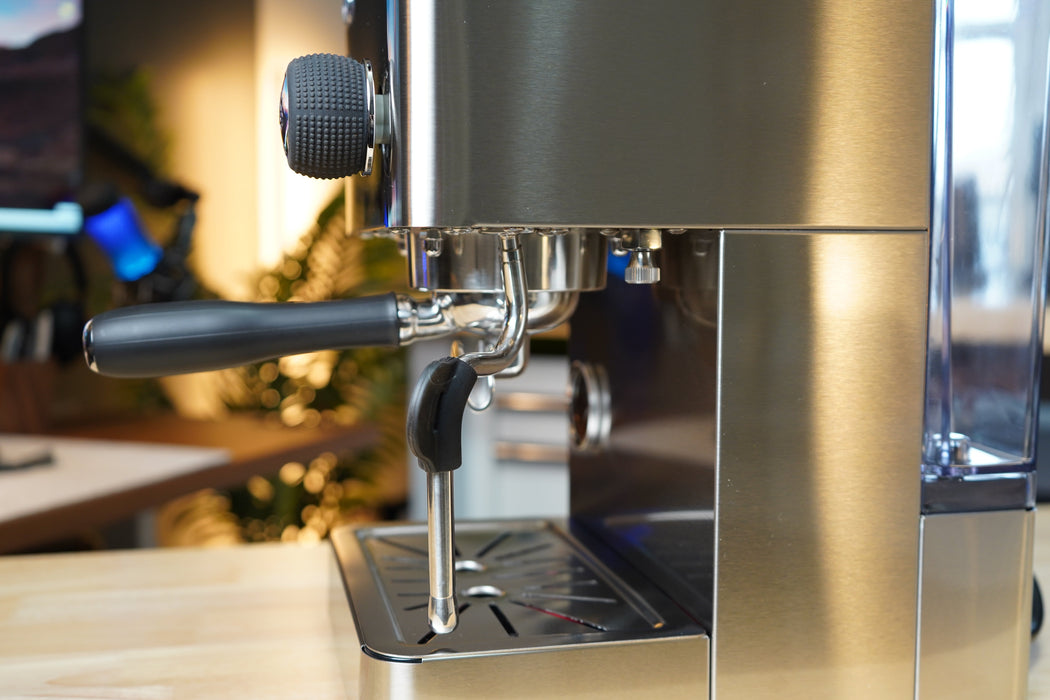

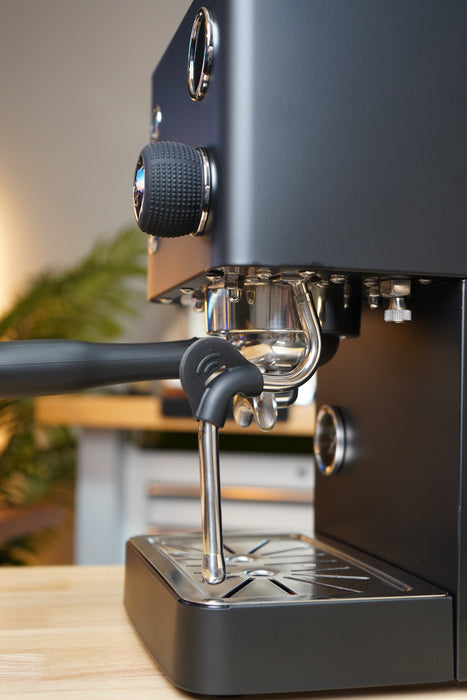

| Steam system |
Separate thermoblock with stainless steam wand |
| Temperature |
Independent brew and steam PID settings |
| Pump |
Italian vibration pump |

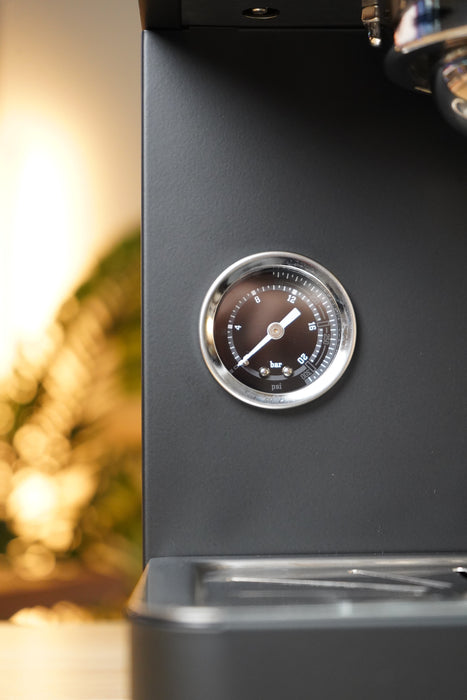

| Pressure |
Externally adjustable OPV control screw |
| Pre-infusion |
Adjustable time and delay |

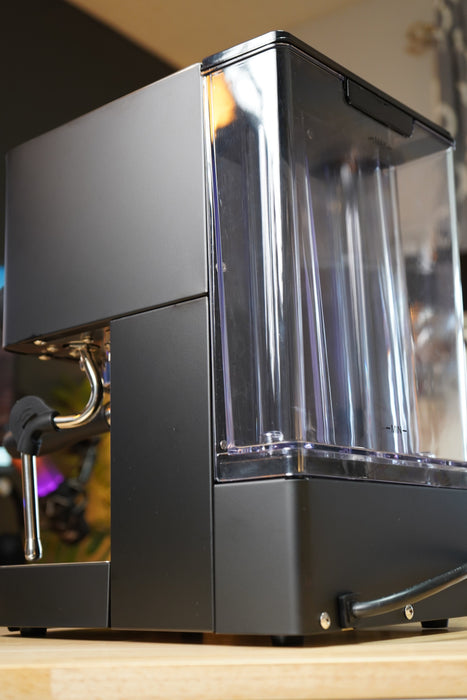

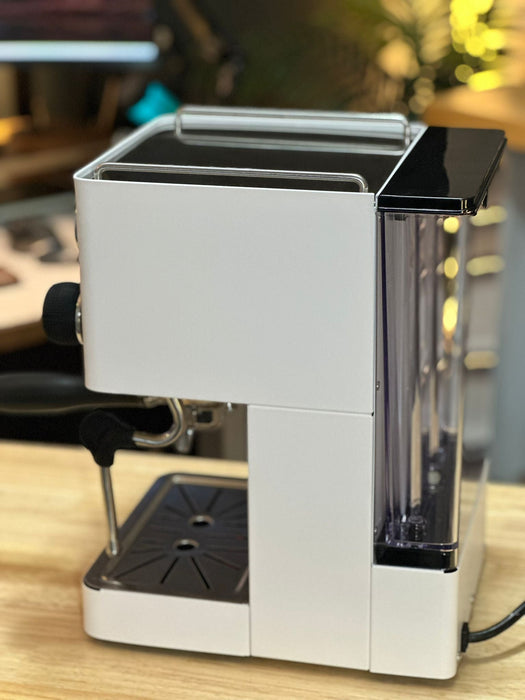

| Reservoir |
1.7 L removable tank |
| Portafilter |
58mm stainless steel; single and double baskets |
| Warm-up |
Approximately 5 minutes under typical conditions |
| Power |
120V, 1500W |
| Dimensions |
8.75 in W × 12.5 in D × 14.625 in H without portafilter |
| Safety |
Over-temperature and over-pressure safeguards |
How to Dial In the Legato V2
Begin with the factory pressure setting and a simple recipe. Weigh the coffee dose, distribute evenly, tamp level and weigh espresso yield. If the shot flows too quickly, grind finer; if it barely flows, grind coarser. Only after grind is close should you experiment with temperature, pre-infusion or OPV settings.
Pressure adjustment changes the machine’s ceiling, but the puck creates resistance. Do not use the OPV to compensate for an unsuitable grinder or uneven preparation. For milk, purge condensation, introduce air near the surface, then roll the milk until glossy. Wipe and purge the wand immediately afterward.
Legato V2 vs. MC3 vs. Gallatin V
| Model |
Heating |
Width |
Best fit |
| Legato V2 |
550ml brew boiler + steam thermoblock |
8.75 in |
Compact 58mm value |
| MC3 |
Actively heated group + 2.5 L steam boiler |
14.17 in |
Touchscreen recipes and larger steam reserve |
| Gallatin V |
2 L HX + E61 group |
11.26 in |
Classic prosumer lever workflow |
What Comes in the Box?
- Turin Legato V2 espresso machine
- 58mm double-spout portafilter
- Single and double filter baskets
- 58mm tamper
- Removable drip tray and reservoir
- Instruction materials
Not included: Coffee grinder, scale, beans and cleaning detergent. The small bottle of backflush powder supplied with some earlier units is no longer included.
Cleaning and Water
Use water made for espresso equipment, avoiding both scale-heavy water and completely demineralized water. Rinse the basket and portafilter, wipe the group area and clean the steam wand after each session. Backflush according to the current manual and use detergent at its recommended interval. Contact Espresso Outlet before an OPV adjustment or internal service if you are unsure.
Complete Your Setup
Compare Turin espresso machines, espresso machines under $1,000 and fast heat-up machines. Pair the Legato with a grinder from the Turin grinder collection or home grinder collection.
Frequently Asked Questions
What changed on the Legato V2?
V2 adds an adjustable OPV control screw, independent PID settings for brew and steam, and adjustable pre-infusion time and delay.
Is it a dual boiler machine?
No. It combines a 550ml brew boiler with a separate steam thermoblock. The heating systems can be set independently, but they are not two conventional boilers.
Can it brew and steam at the same time?
The separate systems avoid changing one boiler between brew and steam temperatures. Follow the manual’s operating sequence for the best workflow.
How quickly does it warm up?
The listed rapid-heating time is about five minutes. Allow the portafilter and cup to warm as well.
Does it use a 58mm portafilter?
Yes. It uses a 58mm stainless steel portafilter and includes single and double baskets.
What is the adjustable OPV for?
The over-pressure valve limits pump pressure. Make small, informed adjustments only after grind and puck preparation are consistent.
Can I program pre-infusion?
Yes. V2 allows adjustment of pre-infusion time and the delay that follows it.
How large is the water tank?

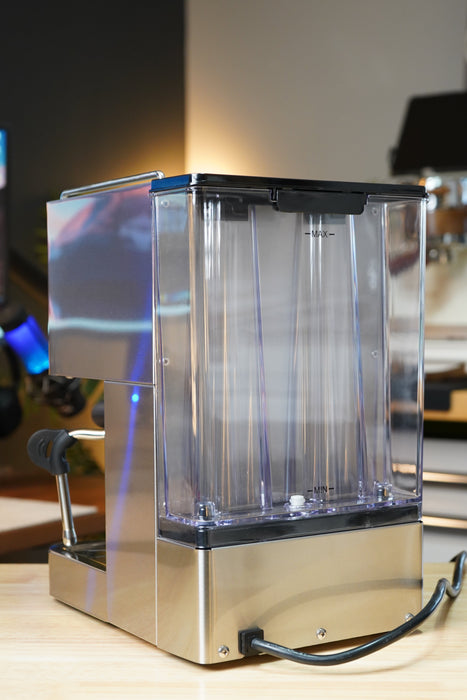

The removable reservoir holds approximately 1.7 liters.
Is a grinder included?
No. Use an espresso-capable grinder with sufficiently fine adjustment.
Which colors are available?
Current stainless, black and white availability is shown in the product selector.
What warranty is included?
A one-year Espresso Outlet warranty and support apply to Legato V2 units purchased from Espresso Outlet.
Is this the U.S. version?
Yes. This is the 120V, 1500W version and ships to U.S. addresses only.
Legato V2 Videos
These click-to-load videos demonstrate the machine and its workflow. Some footage may show another finish or an earlier sample; the written specifications above describe this listing.
